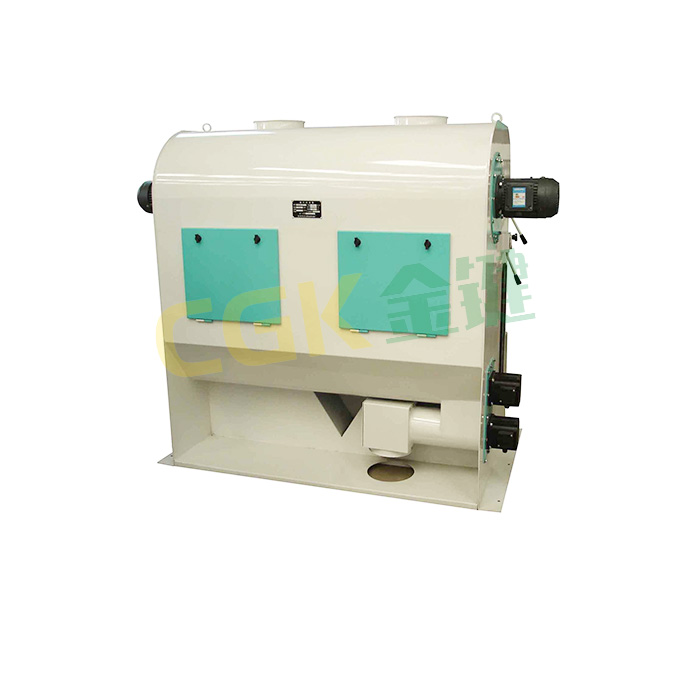

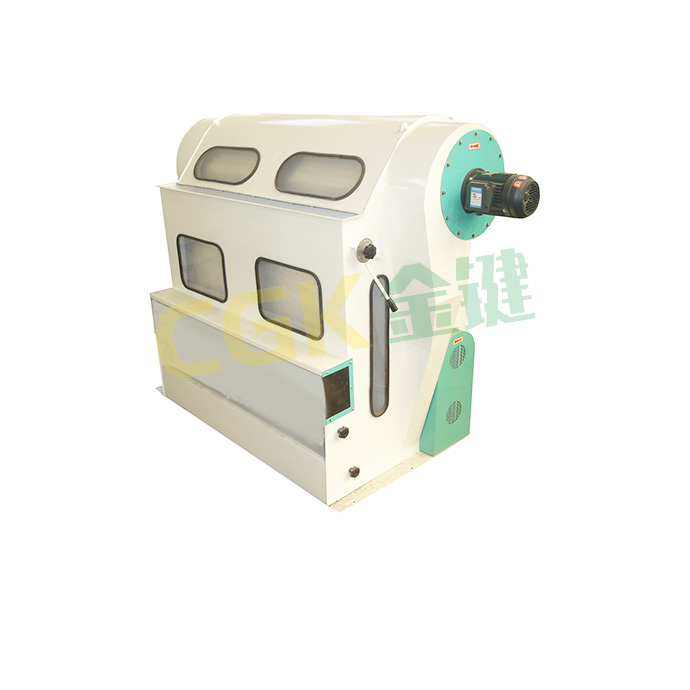

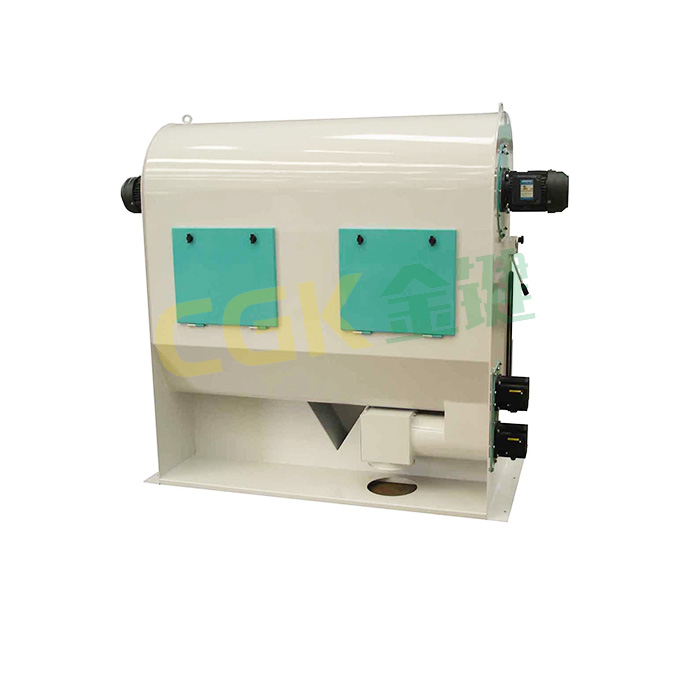

Air recycling separator

Functions:

The TFXH series air recycling separator is an energy-saving air separation and dust removal equipment that uses its own fan to remove light impurities and dust from grain.

This machine is mainly used for material dust removal and light impurity removal in the warehousing industry and grain processing enterprises.

Send Email Contact us

Advantages

Adopt double screw conveying and axial pressure door to avoid wind and discharge mechanism to prevent machine jamming and air leakage.
The unique feeding mechanism ensures uniform feeding without clogging.
Large size dust-reducing chamber enhances the dust-reducing effect.
Optional composite air suction inlets or superimposed vertical air suction ducts can be installed to increase the dust removal and impurity removal effect.

Parameter

Model	Capacity (T/H)		Power (kw)	Weight (kg)	Dimension (LxWxH MM)
Model	Cleaning	Pre cleaning	Power (kw)	Weight (kg)	Dimension (LxWxH MM)
TFXH 80	12	50	2.25	490	126610001680
TFXH 100	16	65	2.25	560	146610001680
TFXH 150	24	100	3.75	710	234610001680
TFXH 200	32	130	5.15	990	286610001680
TFXH 250	40	160	5.15	1160	326610001680
