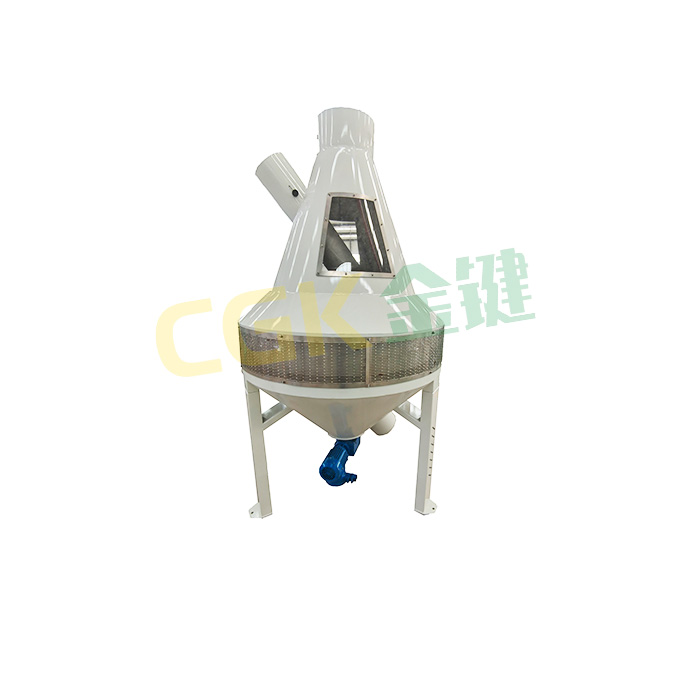

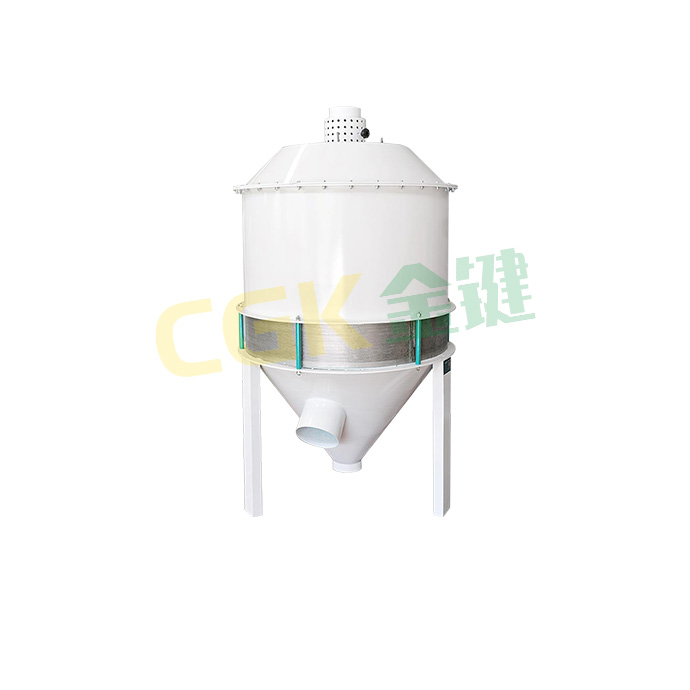

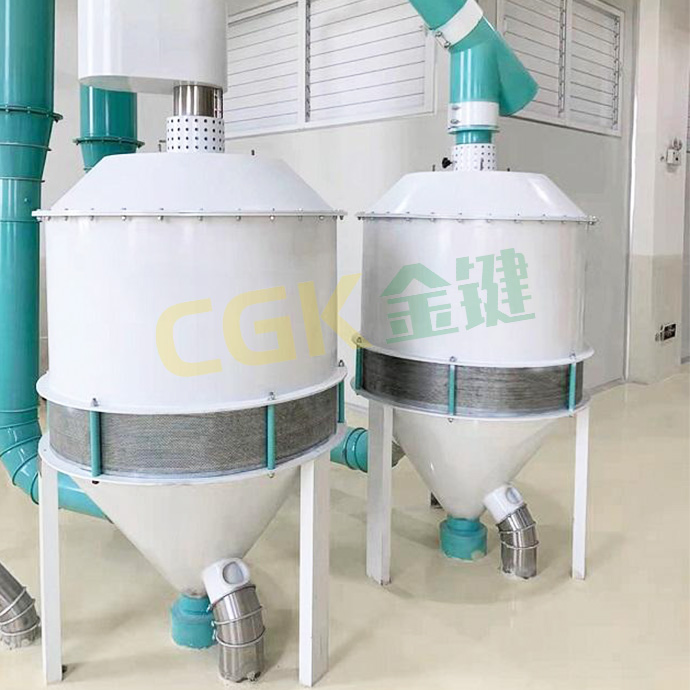

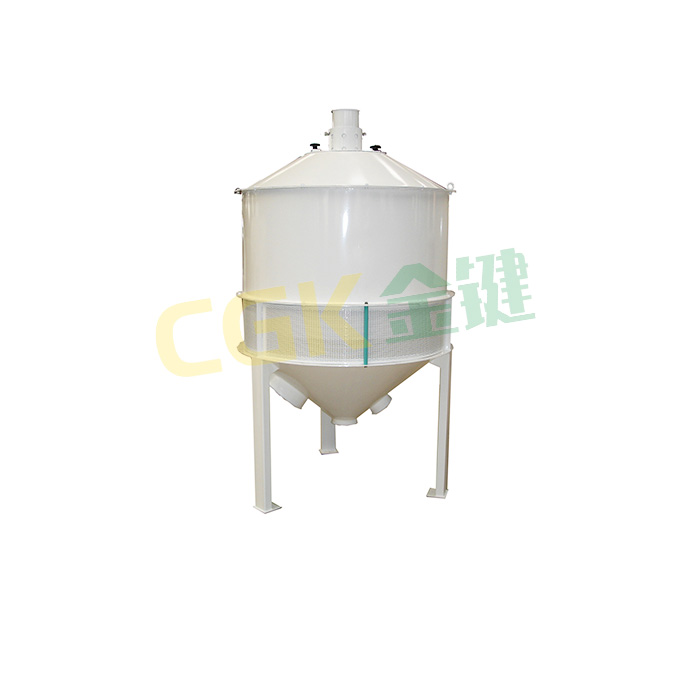

Aspiration separator

Functions:

The TXF series aspirator separator is specially used to separate low specific gravity impurities from grains (such as wheat, corn, barley, etc.) and oil crops.

This machine is used in grain depots, flour mills, rice mills, corn processing plants, oil plants, alcohol plants, etc.

Send Email Contact us

Advantages

Large air suction area, small air volume, and good winnowing effect.
Umbrella-shaped leveling device distributes materials evenly and improves the air separation effect.
The optional rotating disc leveling device can evenly distribute the material, increase the material contact area and improve the air separation effect, especially suitable for the husk suction process.

Parameter

Model	Capcity (T/H)		Air volume (m³/H)		Power	Weight (kg)	Dimension (LxWxH mm)
Model	Cleaning	Pre-cleaning	Cleaning	Pre -cleaning	(kw)	Weight (kg)	Dimension (LxWxH mm)
TXFL 45	3	8	2500	3000		180	860*1500
TXFZ 60	5	20	3000	3500	0.75	290	860*1600
TXFL 60	5	20	2500	3000		200	860*1900
TXFZ 80	12	50	3500	4500	1.5	350	860*1900
TXFL 80	12	50	2800	3000		230	860*2100
TXFL100	16	65	3500	3800		360	1060*2150

Solution

Case

Products

Aspiration separator

Functions:

Advantages

Parameter

Related Products

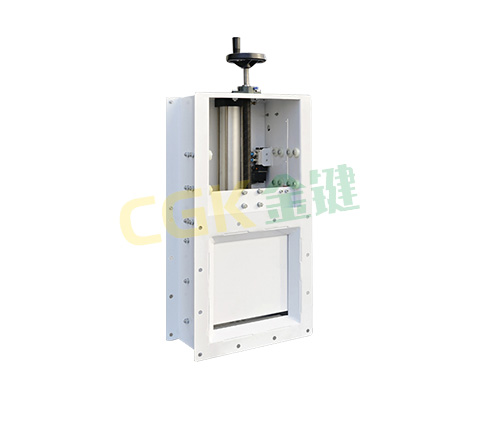

Valve switch

Pulse air jet deduster

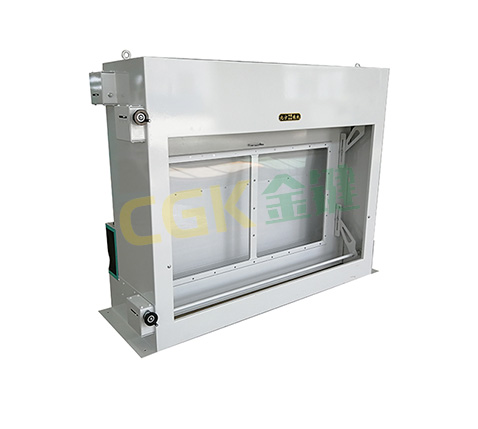

Vertical aspirator
