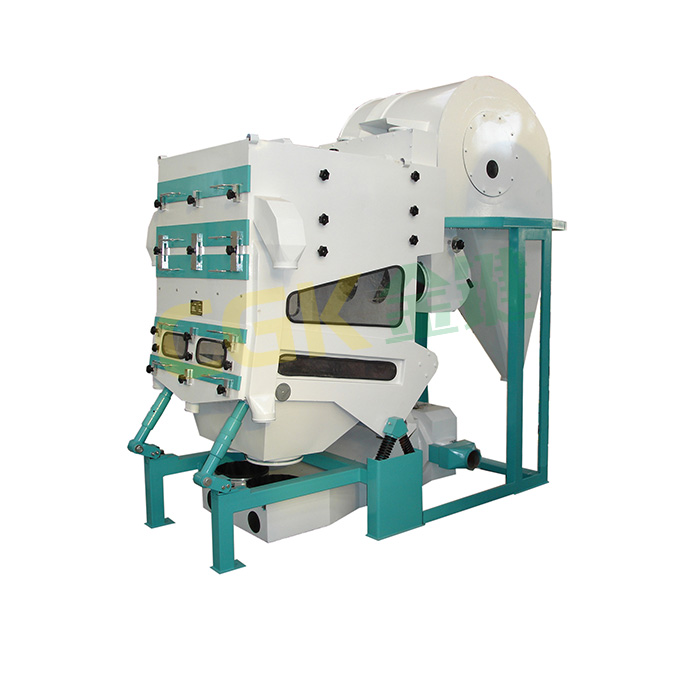

Combined destoner

Functions:

The TQZX series combined cleaner and destoner integrates the functions of wind recycling, material screening, classification, stone removal, light impurity separation and other functions.

This machine has multiple functions and can replace a vibration separator, a grader, a destoner, an air separator, a dust collector, a fan, an kit of air pipes etc.

Send Email Contact us

Advantages

One machine can be used for multiple purposes, with low cost and small investment.
It occupies a small area and can replace multiple equipment such as vibration, classification, stone removal, winnowing, and dust removal;
Increase the screen area for handling small impurities and enhance the cleaning function of small impurities.

Parameter

Model	TQZX-63	TQZX-80	TQZX-100	TQZX-125	TQZX-150
Width of the screen (cm)	63	80	100	125	150
Capacity (T/H)	5-7	7-9	9-12	12-18	16-26
Weight (kg)	520	680	760	990	1050
Dimension (LxWxH mm)	28808762620	288010642620	288012642680	288014902680	288017462680
Power(KW)	4.0	4.0	4.9	8.5	8.5
