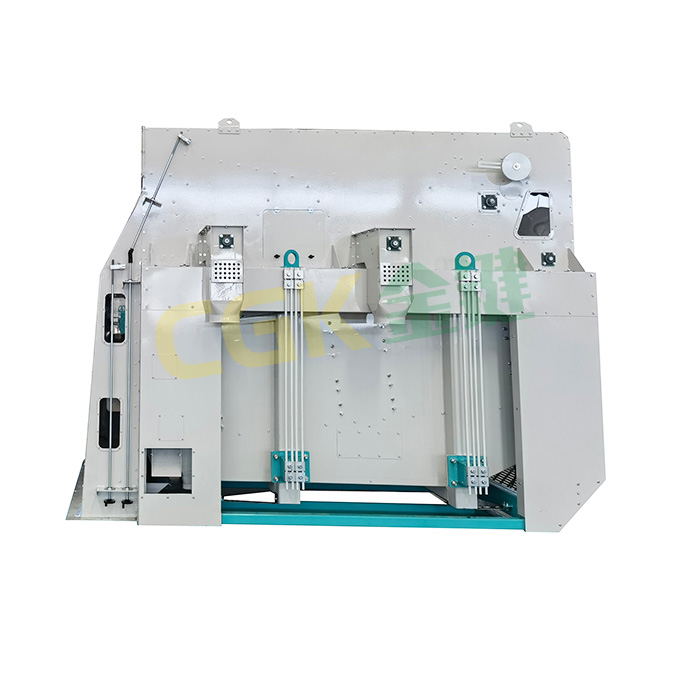

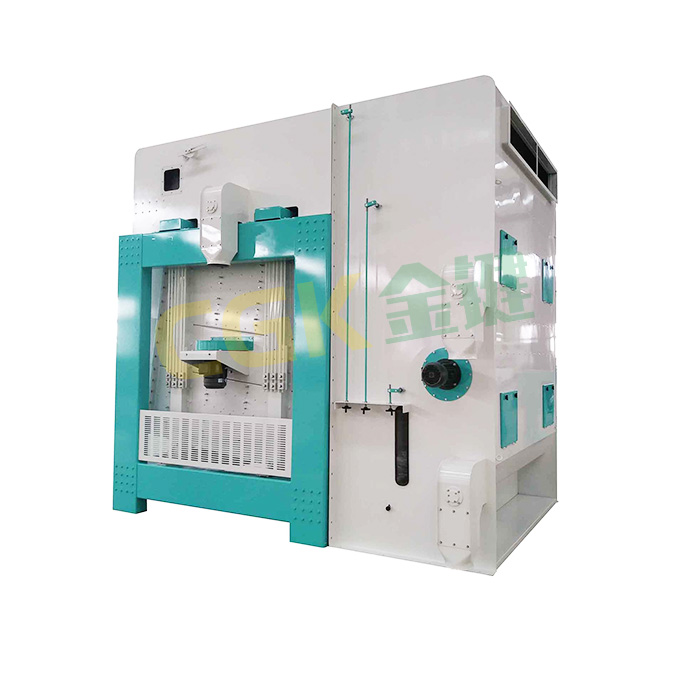

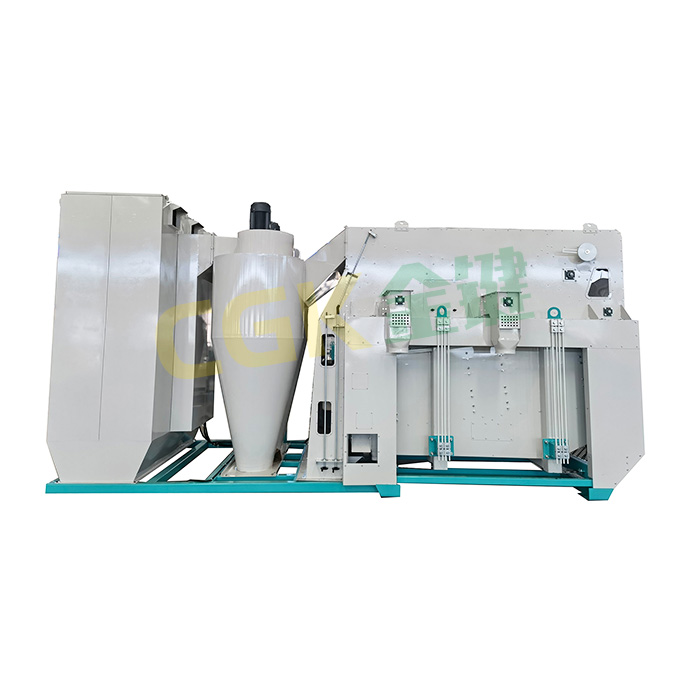

Combined oscillating separator

Functions:

The combined oscillating separator is a high-end product designed on our company's 4.0 platform, which uses the principle of rotary vibration to classify granular bulk materials.

It is mainly used for grain cleaning in grain and oil processing and warehousing industries, and can also be used for grading granular materials in pharmaceutical, chemical and other industries.

Send Email Contact us

Advantages

Compact and sturdy structure, exquisite and beautiful appearance.
High grading efficiency, high output, low energy consumption, clean and environmentally friendly.
Simple maintenance and easy replacement of wearing parts.
Three times air selection structures (twice at the inlet and once at the outlet) to completely remove light impurities and dust.
Extra large screening and grading area ensures high precision and large output.
The screening area can reach 45 square meters, and the maximum output can reach 350 tons/hour.

Parameter

Model	Screen size (LxW cm)	Capacity (T/H)	Weight (kg)	Power (kw)	Dimension (LxWxH mm)
TXZH 200*250-4	200×250	150	3620	4	3516×2966×2960
TXZH 200*250-6	200×250	150	4320	4	3516×2966×3160
TXZH 200*300-4	200×300	230	4510	5.5	4016×2966×3050
TXZH 200*300-6	200×300	280	5260	5.5	4016×2966×3235
TXZH 200*380-4	200×380	300	4679	5.5	4812×2966×3168
TXZH 200*380-6	200×380	350	5568	5.5	4812×2966×3570
