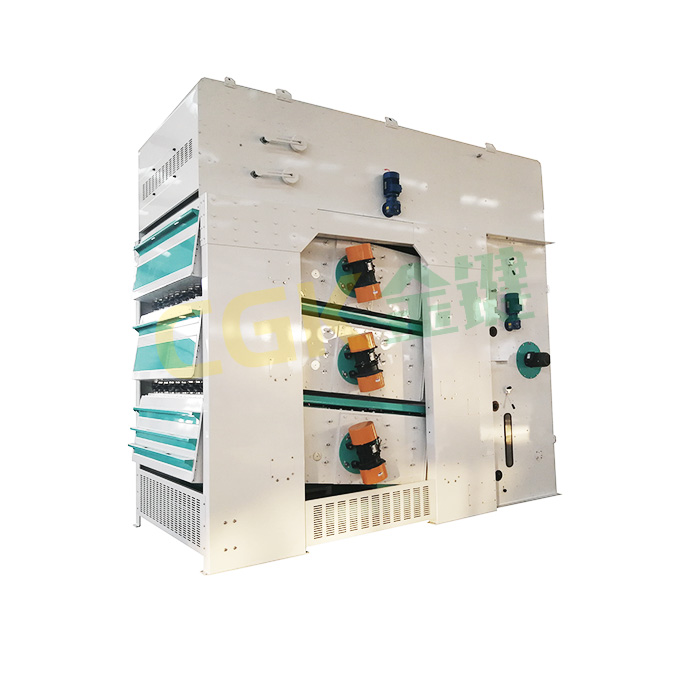

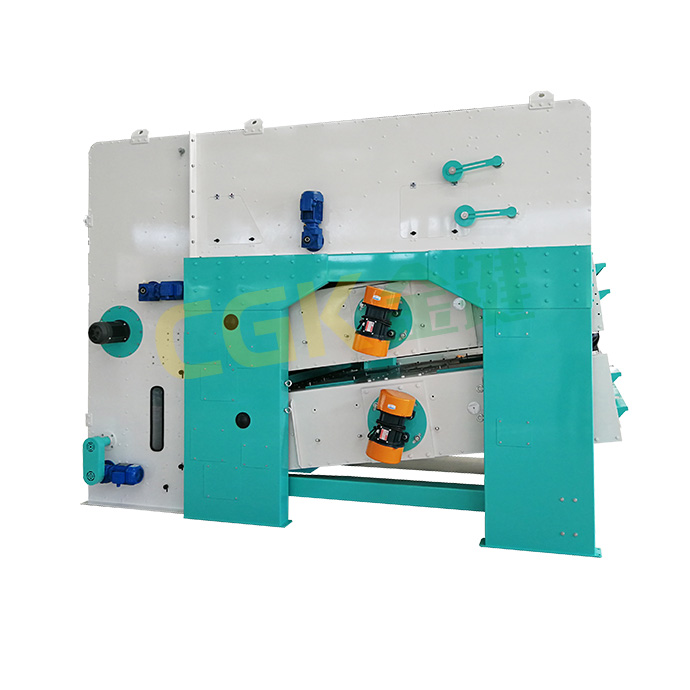

Combined Vibration separator

Functions:

The combined vibration separator is a high-end product designed on our company's 3.0 platform, which uses the principle of vibration to classify granular bulk materials.

It is mainly used for grain cleaning in grain and oil processing and warehousing industries, and can also be used for grading granular materials in pharmaceutical, chemical and other industries.

Send Email Contact us

Advantages

Compact and sturdy structure, exquisite and beautiful appearance.
The stroke, throwing angle and screen surface inclination angle are all adjustable.
High grading efficiency, high output, low energy consumption, clean and environmentally friendly.
Maintenance is simple, no lubrication is required, and wearing parts are easy to replace.
Extra large screening and grading area ensures high precision and large output.
Five-times air selection structures (twice at the inlet and three times at the outlet) can completely remove light impurities and dust.
The air selection adopts a patented technology that combines external suction and circulating air, which reduces the external exhaust air volume by more than 50% and the power consumption by more than 30%.

Parameter

Model	Screen size (WxL cm)	Max. Capacity (T/H)	Power (kw)	Dimension(LxWxH mm)	Air volume (m³/min)
TZDH 150*280	150*280	200	0.757+2.22	406022003980	130
TZDH 180*280	180*280	350	0.757+2.22	406025003980	155
TZDH 200*280	200*280	500	0.757+2.22	426027003980	175
