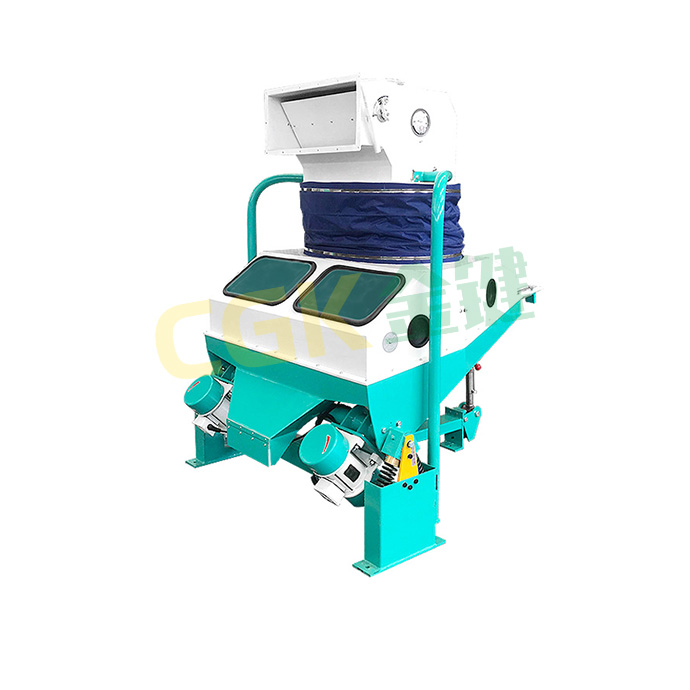

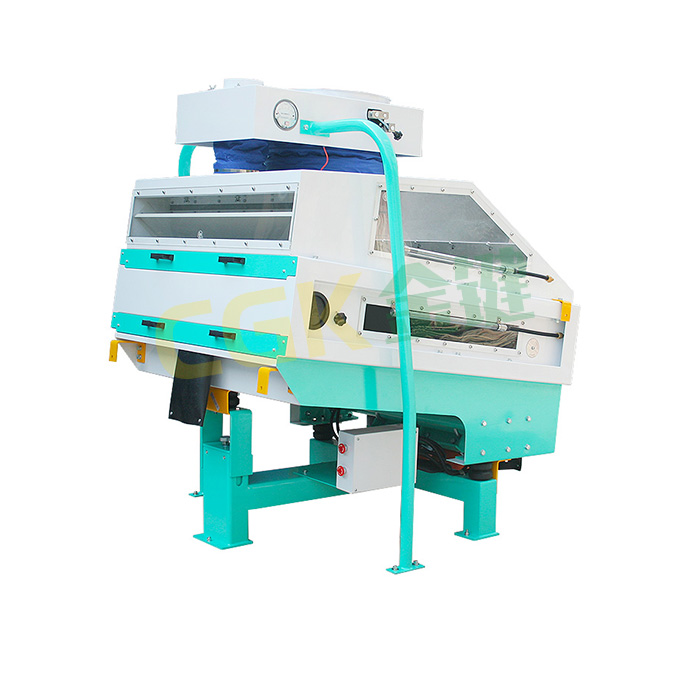

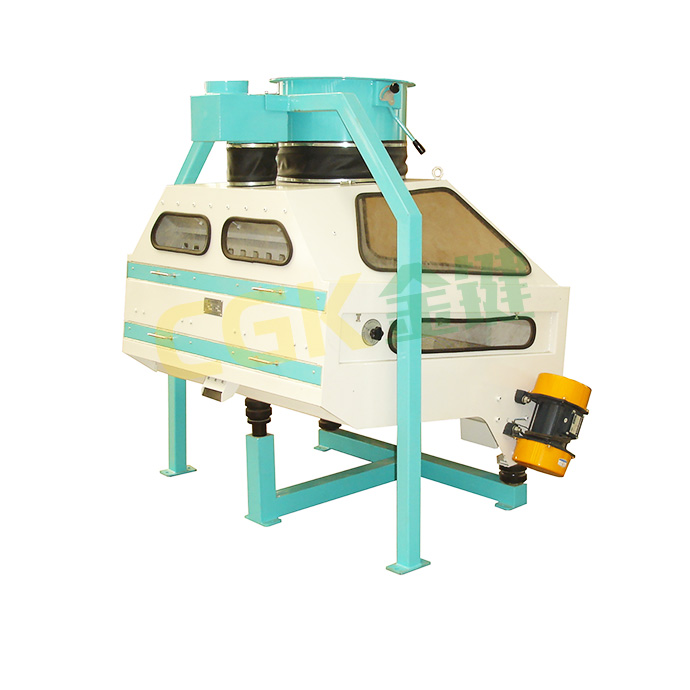

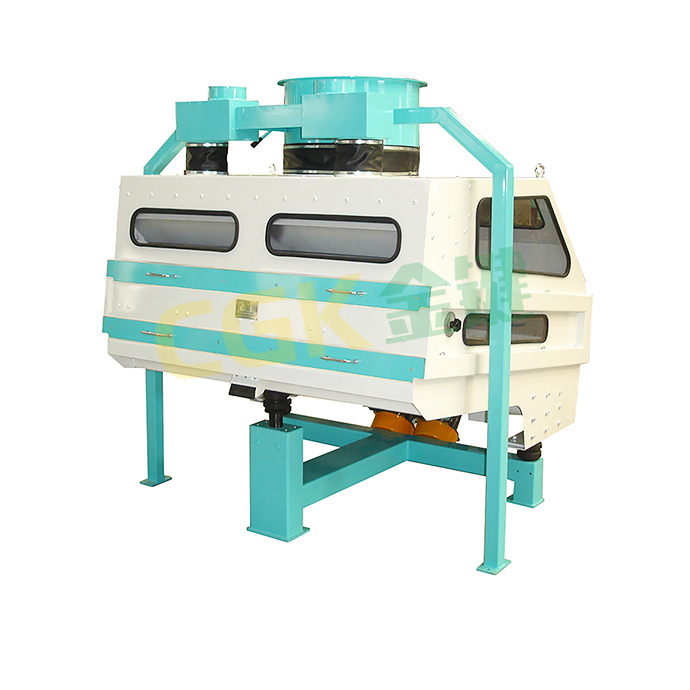

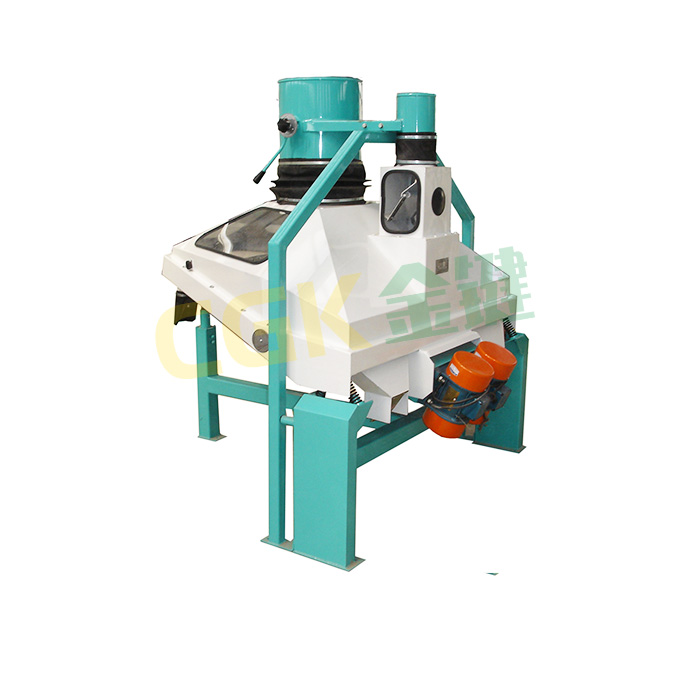

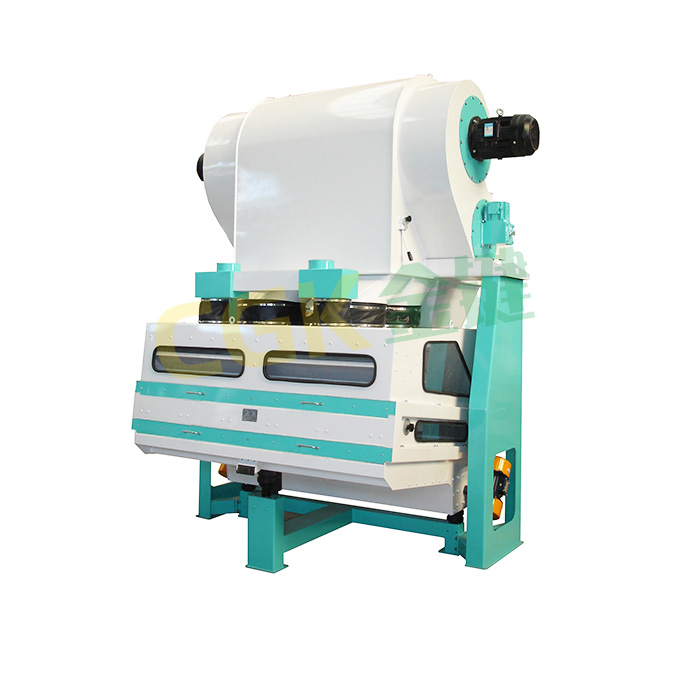

Destoner

Functions:

The TQS series destoner is a high-end product designed on our company's 3.0 platform. It separates mixed materials according to the specific gravity of granular bulk materials and the air suspension speed. Remove heavy impurities from materials, such as stones, mud, metal, etc.

It is mainly used in the grain and oil processing and raw seeds storage industries, and often used after cleaning equipment

Send Email Contact us

Advantages

Compact and sturdy structure, exquisite and beautiful appearance.
The stroke, throwing angle and screen surface inclination angle are all adjustable.
High grading and stone removal efficiency and high output.
Low consumption, clean and environmentally friendly.
Simple maintenance and easy replacement of wearing parts.
Double-layer screen surface with double stone removal function.
Optional circulating air stone removal machine can save space and reduce energy consumption.

Parameter

Model	Sceen size (cm)	Dimension (LxWxH, mm)	Power (kw)	Capacity (T/H)	Air volume (m³/H)
TQSF63	63	14508761800	0.25*2	5-7	4500
TQSF80	80	145010461800	0.25*2	7-9	6000
TQSF100	100	150012461900	0.25*2	9-11	8000
TQSF125	125	150014961920	0.25*2	11-16	10200
TQSF150	150	150017461800	0.25*2	12-18	12000
TQSF180	180	150020461800	0.37*2	14-22	14000
