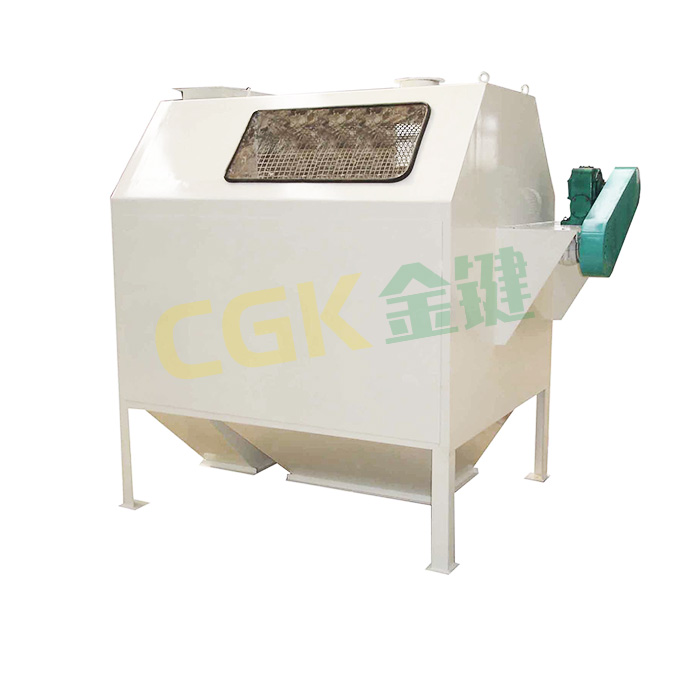

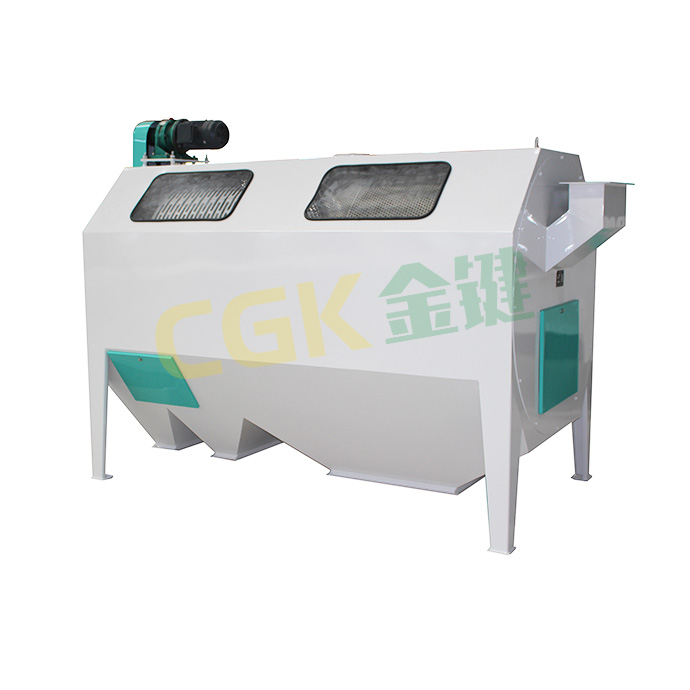

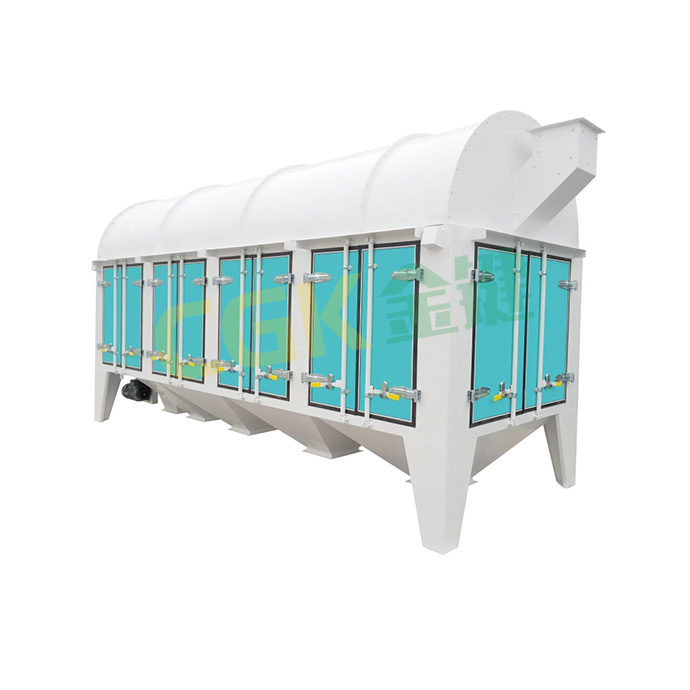

The main working surface of the drum cleaner is the cylindrical screen frame, which classifies materials according to particle size and removes large and small impurities in the grain. It is widely used in grain processing plants to receive raw grain to ensure the normal operation of subsequent equipment. Can be used for grading granular materials.
It is mainly used for cleaning before storage in the grain warehousing industry, the first cleaning in the grain processing industry, and can also be used for grading granular materials in the pharmaceutical, chemical and other industries.
|
Model |
diameter of the sieve frame(mm) |
Capacity(t/h) |
Power(kw) |
Air volume(m³/min) |
Weight(kg) |
Dimension(LxWxH mm) |
|
SCY63 |
630 |
20 |
0.75 |
20 |
390 |
1585*760*1335 |
|
SCY80 |
800 |
36 |
0.75 |
35 |
468 |
1795*980*1650 |
|
SCY100 |
1000 |
80 |
1.1 |
30 |
910 |
2190*1200*1820 |
|
SCY120 |
1200 |
100 |
1.1 |
35 |
1280 |
2360*1400*2015 |
|
SCY150 |
1500 |
150 |
1.1 |
40 |
1680 |
2860*1700*2515 |
|
DSCY120 |
1200 |
150 |
1.1 |
30 |
980+ |
L(Customizable)*1370*2058 |
|
DSCY120*2 |
1200 |
300 |
1.1*2 |
60 |
1890+ |
L(Customizable)*2730*2014 |
|
DSCY150 |
1500 |
180 |
1.1 |
35 |
1160+ |
L(Customizable)*1670*2350 |
|
DSCY150*2 |
1500 |
360 |
1.1*2 |
70 |
2310+ |
L(Customizable)*3330*2350 |
