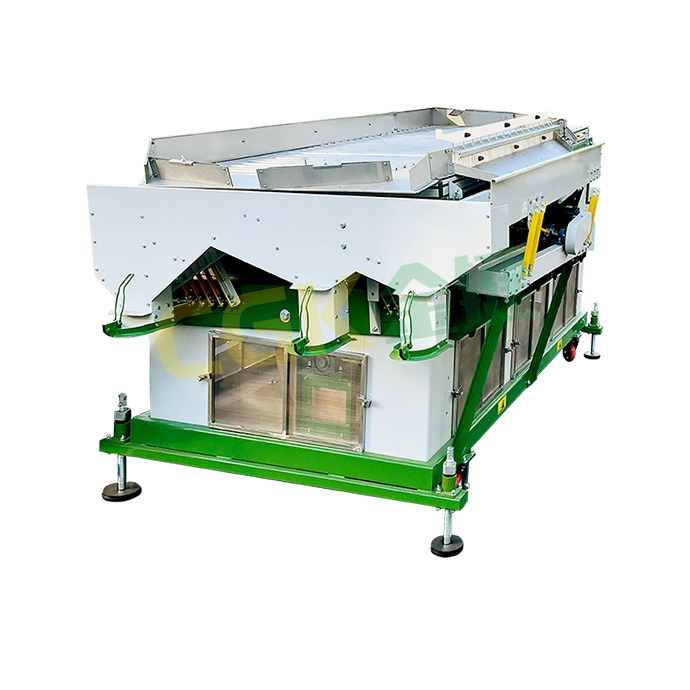

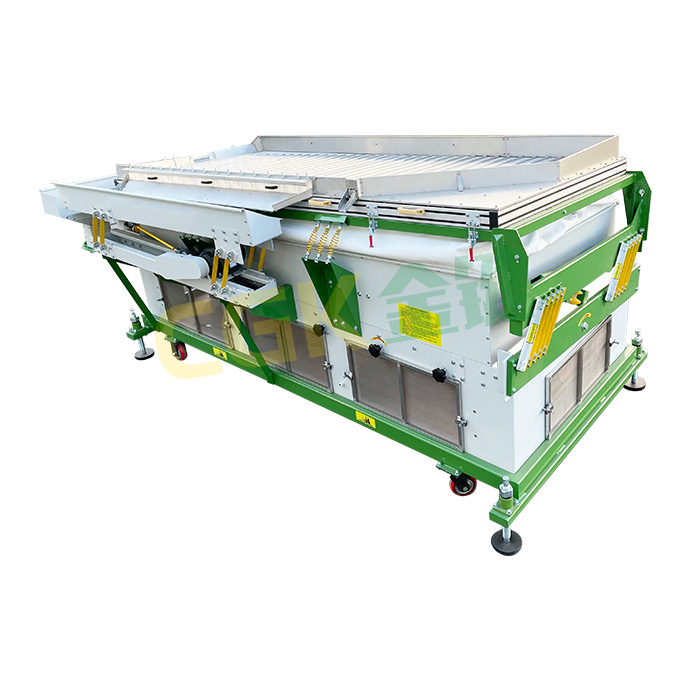

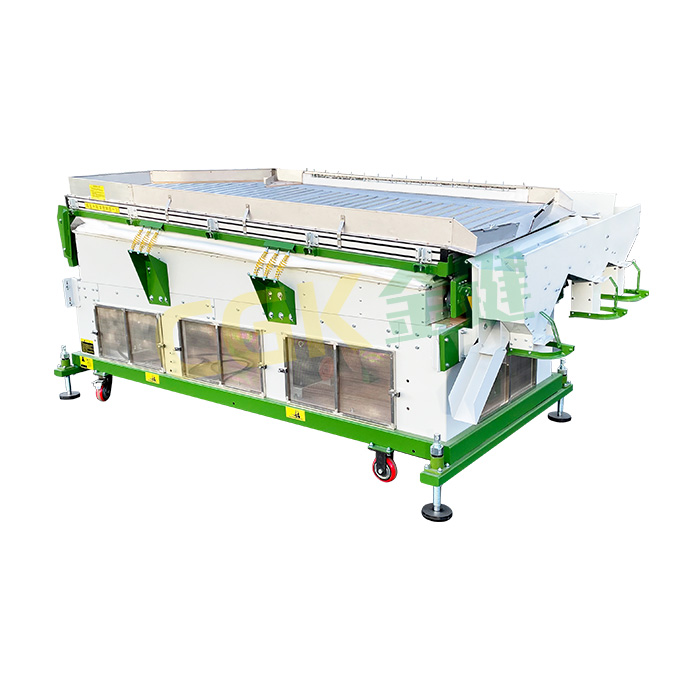

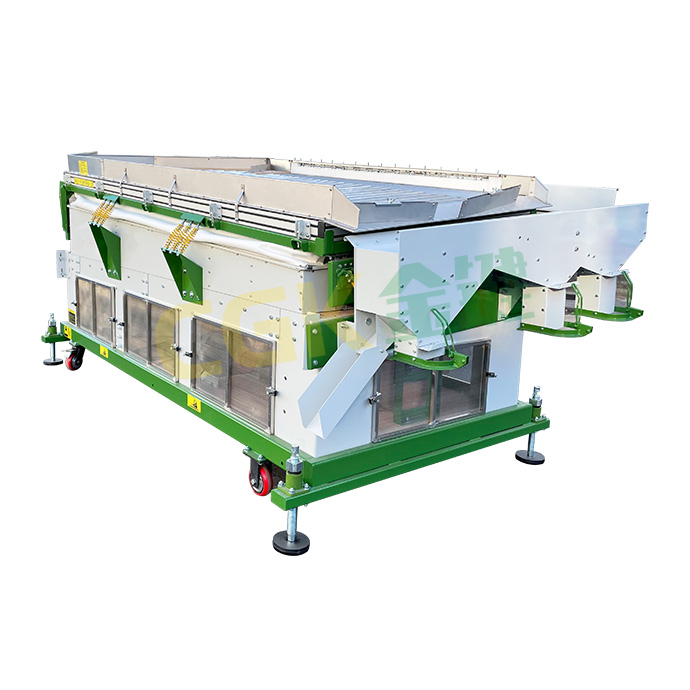

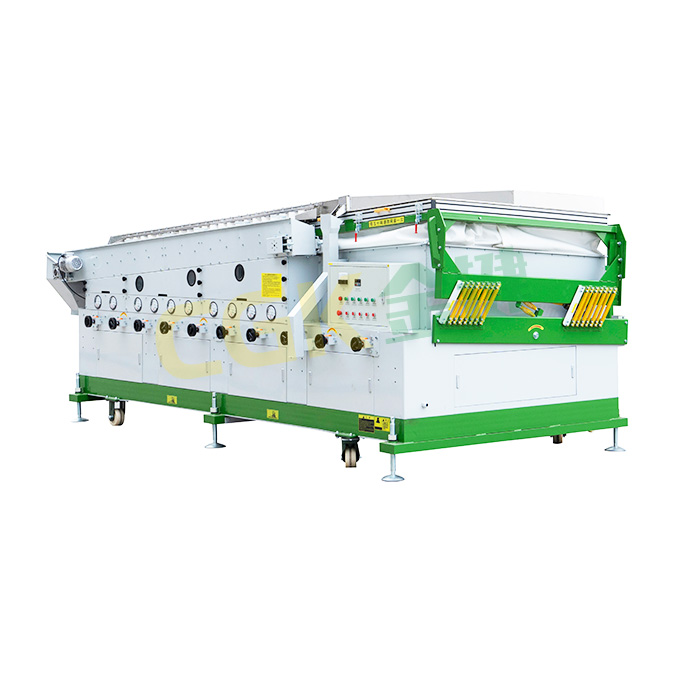

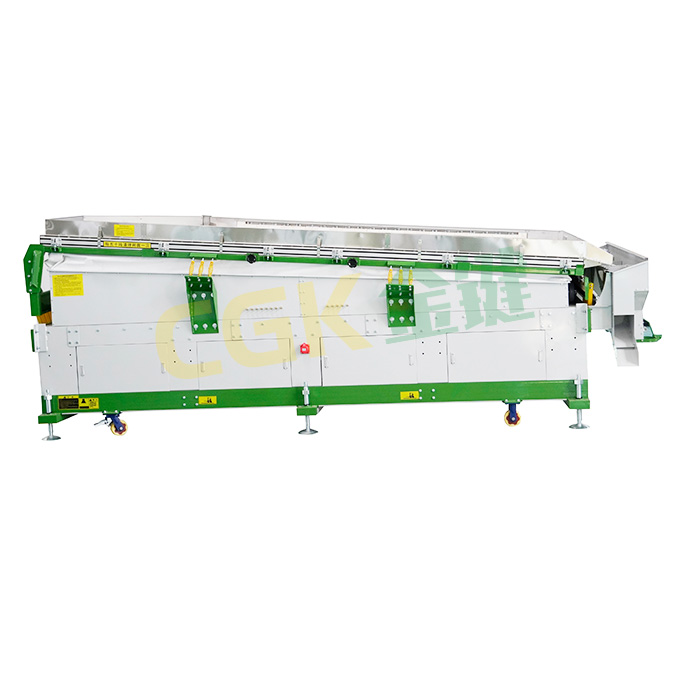

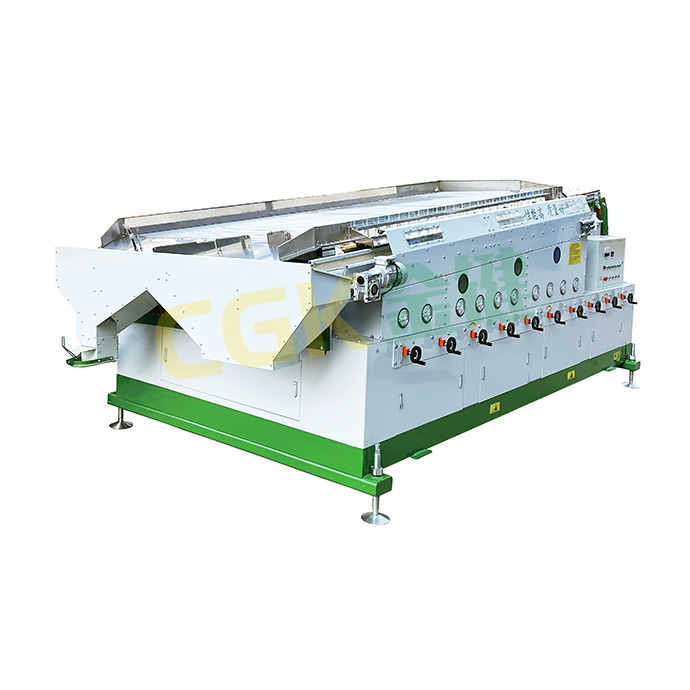

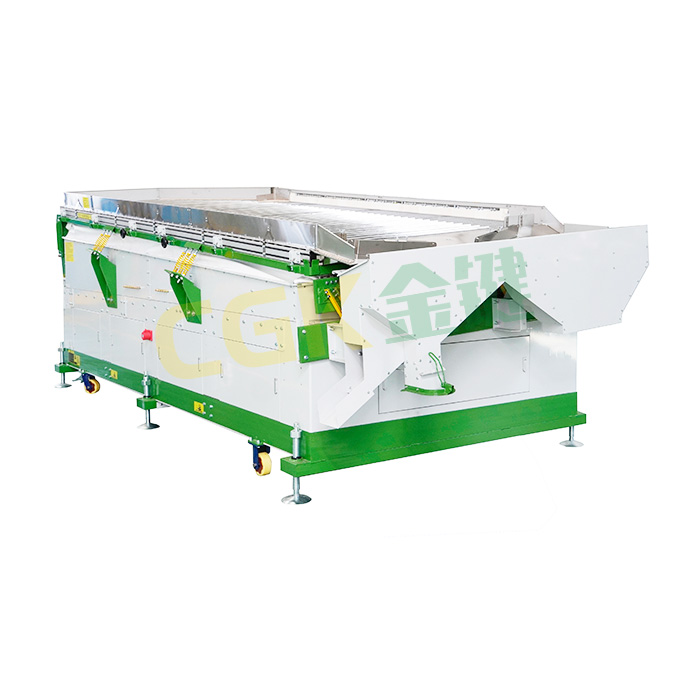

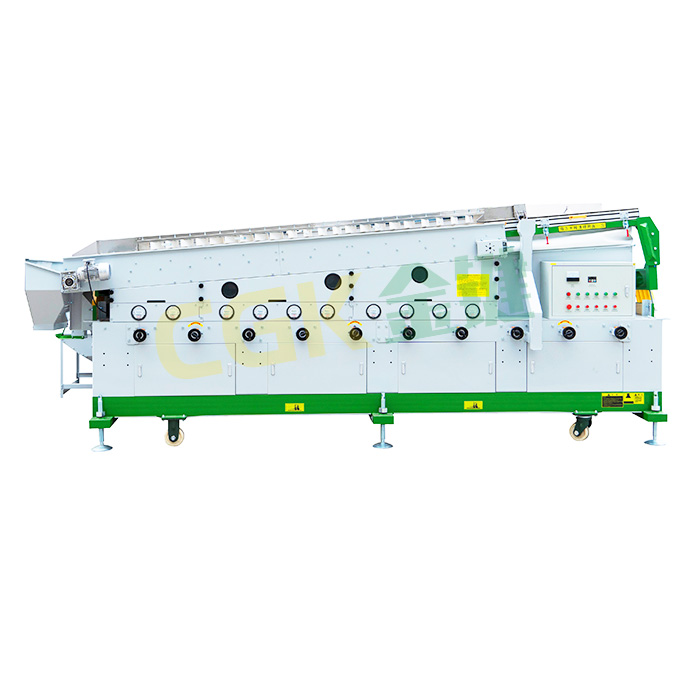

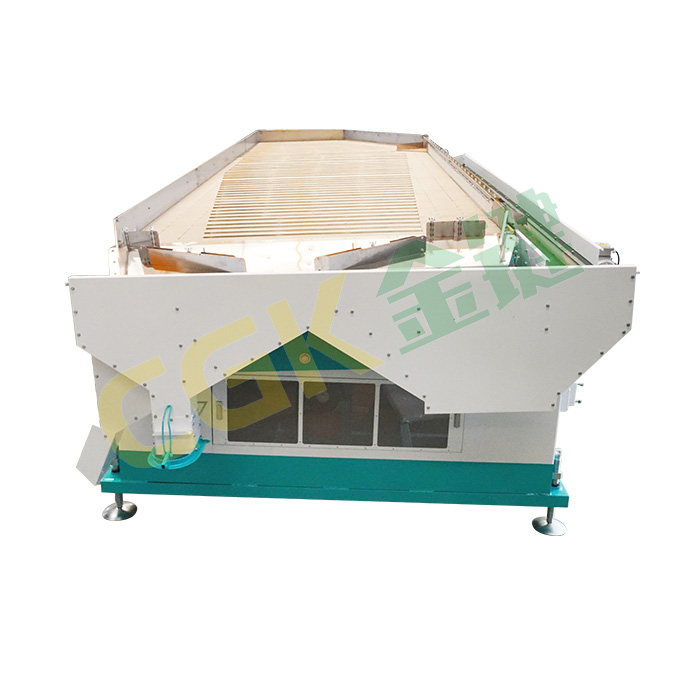

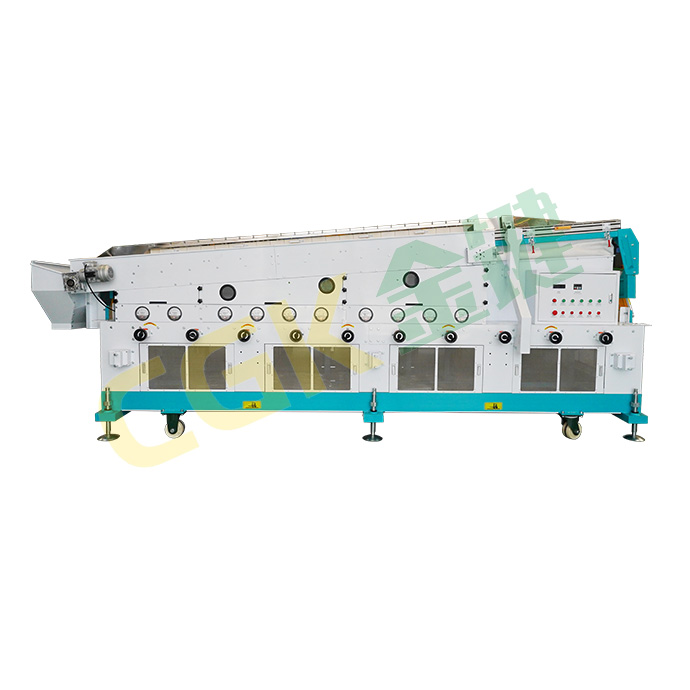

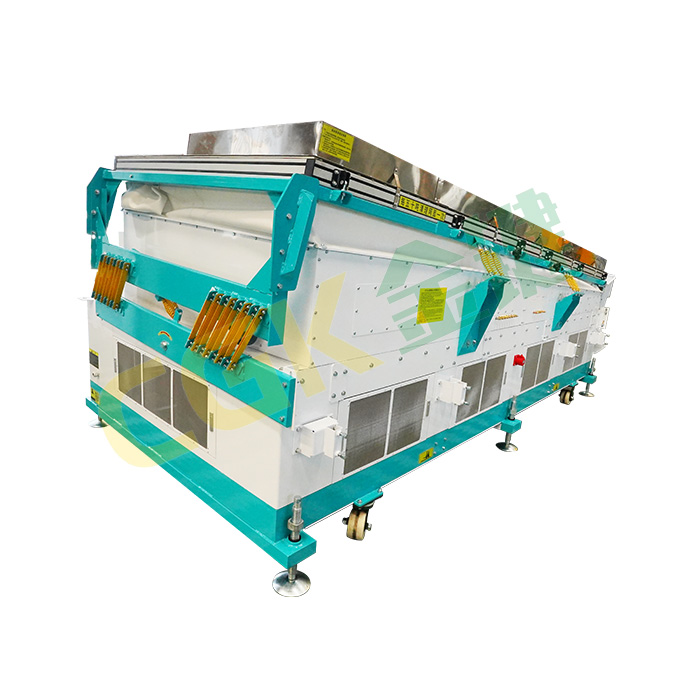

Gravity separator

Functions:

The working principle of the blowing type（positive pressure） gravity separator is that the material produces specific gravity segregation under the dual effects of aerodynamic force and vibration friction.By adjusting technical parameters such as wind pressure and vibration frequency, materials with a larger specific gravity sink to the bottom and move upwards by the friction generated by the vibrating screen surface. Materials with a smaller specific gravity are suspended on the surface and flow to lower areas by the air flow. In order to achieve the purpose of separation according to specific gravity.

This machine can effectively remove light impurities such as immature seeds, bud seeds, insect-eaten grains, moldy grains, and smut grains in the material. It is suitable for the selective processing of wheat, corn, rice, various beans and various oil crops.

Send Email Contact us

Advantages

Large output: the table is widened and lengthened, and equipped with a side grain conveyor belt, with a maximum capacity of 15 tons per hour;
High precision: The table vibration and air uniformity structure are strictly designed, and fine distribution at the outlet, which greatly improves the screening accuracy;
Stable and reliable: imported laser equipment is used to cut sheet metal parts and profile parts, and the whole machine is bolted to reduce welding deformation, accuracy and stability is improved .
High configuration: the countertop is made of aluminum alloy profiles to avoid cracking and deformation, and the cross-section is independently designed to be more strong but light in weight; The use of 304 stainless steel braided mesh on the countertop greatly improves the service life;
Easy to operate: Equipped with an air pressure gauge and position display, and using a rotary air adjustment handle, which is more convenient to operate than before; using a downward air inlet form, eliminating the need to clean the air inlet;
Convenient maintenance:The operators can quickly flip the table and centralized oil injection structure outside the bearing is adopted.Maintenance is more convenient.

Parameter

Model	Screen size (mm)	Power(kw)	Capcity(T/H)	Weight(kg)	Dimension(LxWxH, mm)
TJXB-6	1380*3150	13.2	5	1550	387017201700
TJXB-8	1380*3150	13.95	8	1680	389020001730
TJXB-15	4410*1750	24.95	15	3500	523523801900
