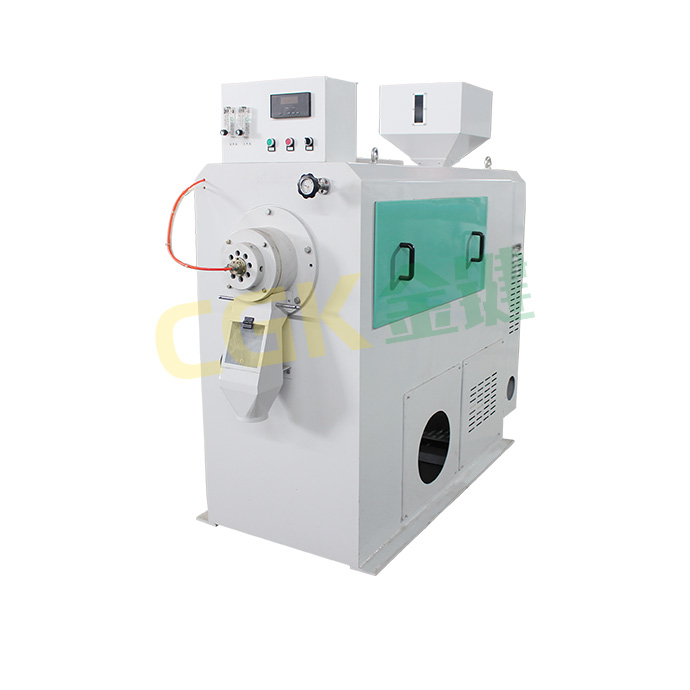

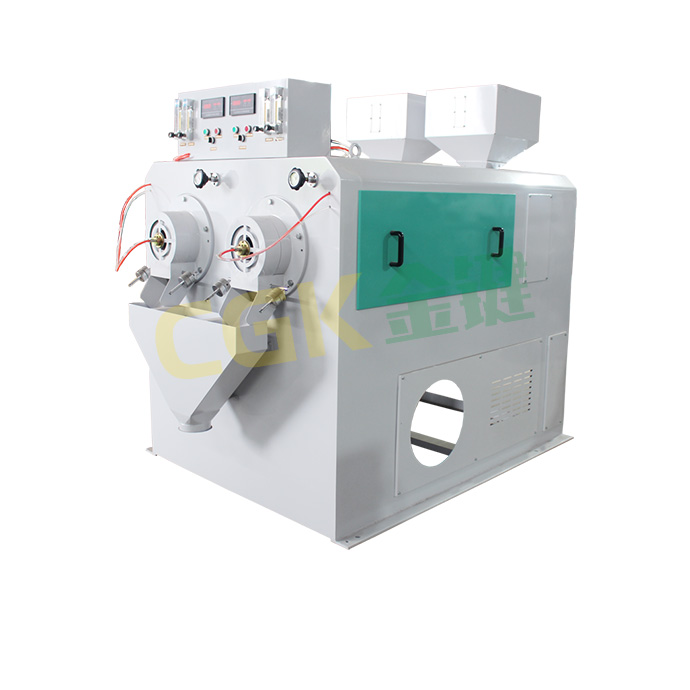

Horizontal grain polisher

Functions:

The material enters the polishing chamber under the action of the propeller, and is rubbed by the iron roller and sieve plate to remove the bran powder, dirt, etc. to achieve the polishing effect and fully protect the integrity of the kernel.

Mainly used in grain processing enterprises, food processing plants, etc.

Send Email Contact us

Advantages

For grains in different regions, different varieties, and different precision requirements, the structure and technical parameters of the polishing roller and sieve plate in the polishing chamber can be adjusted, which has a wide range of adaptability.
It can polish millet, broomcorn millet, corn grits, beans, oats, barley, highland barley and other grain particles.
The lengthened polishing roller has a larger moving polishing area, and is used with multi-point pneumatic or hydraulic pressure to atomize water to make the surface of grain particles brighter.

Parameter

Model		MPGT-250	MPGT-350	MPGT-500	MPGT-650
Output(t/h)	broomcorn millet,millet	2-2.5	3-4	4-5	5-7
	Oat	1.5-2	1.5-3	3-4	4-5
	barley,highland barley	2-3	-	-	-
Power(kW)	broomcorn millet,millet	37	45	55	75
	Oat	37	45	55	75
	barley,highland barley	37	45	55	75
Air volume(m³/h)		2400	2700	3200	3600
Weight (kg)		750	835	1850	2070
Dimension(LxWxH)(mm)		19057301812	22757301812	25157602106	28509602330

Solution

Case

Products

Horizontal grain polisher

Functions:

Advantages

Parameter

Related Products

Gravity separator

Corn germ extractor

Corn degerming machine

Vertical grains polisher

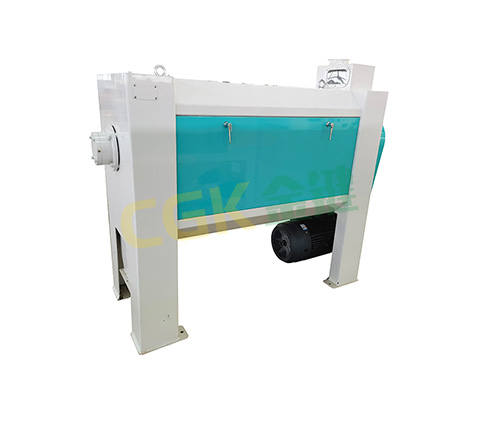

Wheat peeling machine
