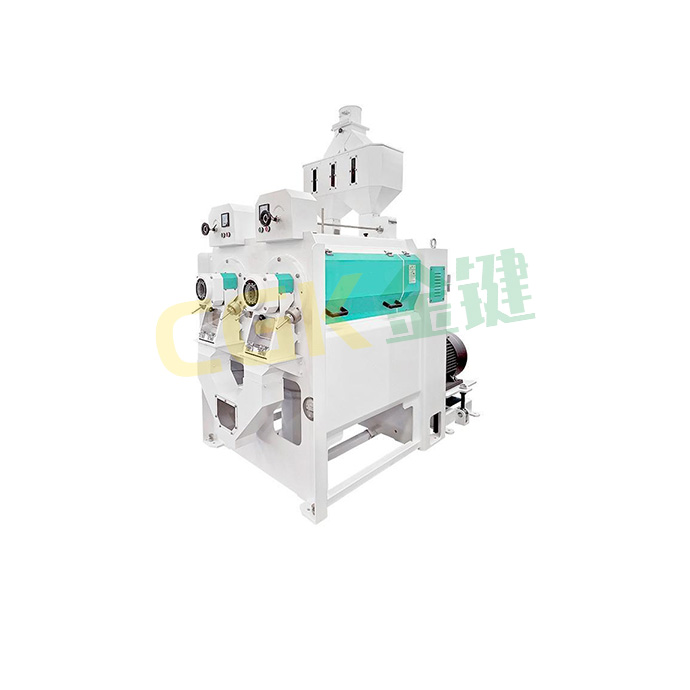

Horizontal rice whitener

Functions:

The husked rice enters the whitening chamber under the action of the propeller, and is rubbed by the grinding wheel and the sieve plate to achieve the effect of rice whitening.

Mainly used in rice milling plants, food processing plants, etc.

Send Email Contact us

Advantages

The emery roller is lengthened and the diameter is enlarged, so the rice whitening area is larger and the effect is more uniform.
Install a high-pressure jet fan to reduce the temperature of the rice, increase the number of rice turning, and improve the whitening effect;
The discharge port adopts a drip plate classification and secondary separation device, which can reduce the rice temperature and bran content.
Optional intelligent operating system, added human-computer interaction interface, automatically adjusts the incoming machine flow and stabilizes the main motor current.

Parameter

Item	MNMS18	MNMS21.5	MNMS25	MNMS30	MNMS30*2
Capacity (t/h)	2.5-3.5	3-4.5	3.5-5	4.5-6	8-12
Air Volume (m³/h)	1500-2200	2000-2500	2200-2800	2500-3000	5000-6000
Power (kw)	18.5/22-4	30/37-4	30/37-4	37/45-4	74/90-4
Weight (kg)	600	630	650	720	1350
Dimensions (mm)	1827X620X1966	2030X710X2084	2065X710X2084	2427X847X2301	2527X1500X2401

Solution

Case

Products

Horizontal rice whitener

Functions:

Advantages

Parameter

Related Products

Paddy separator

Rice polisher

Paddy husker

Vertical iron roller whitener

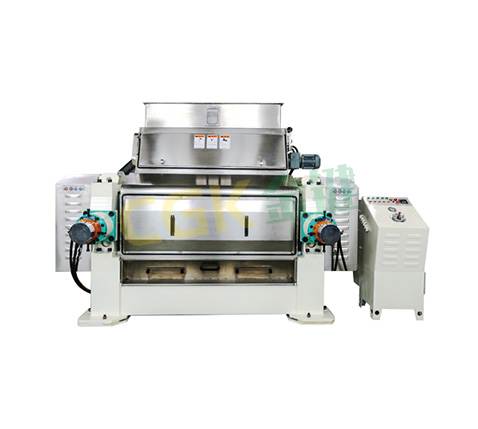

Hydraulic flaker
