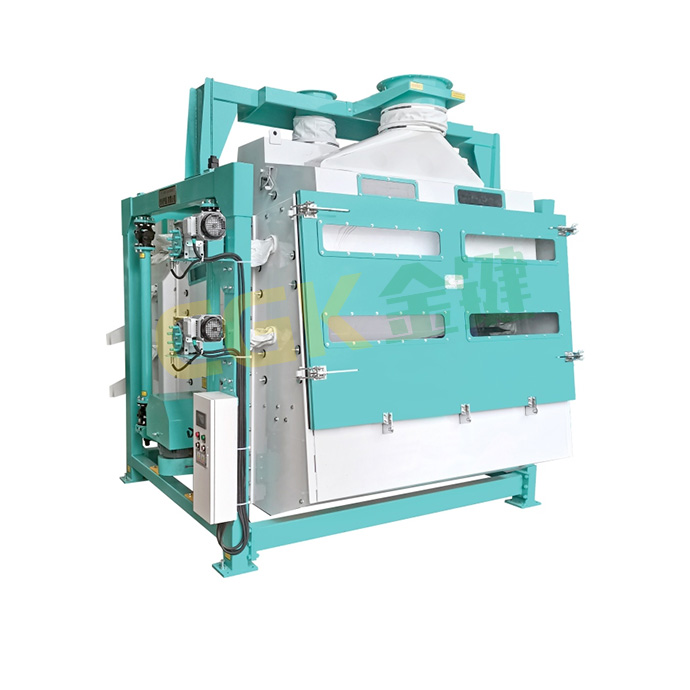

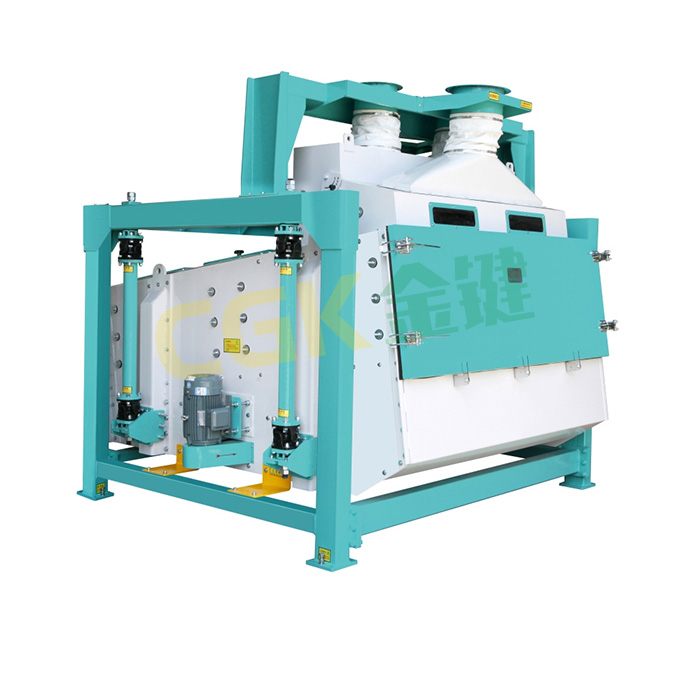

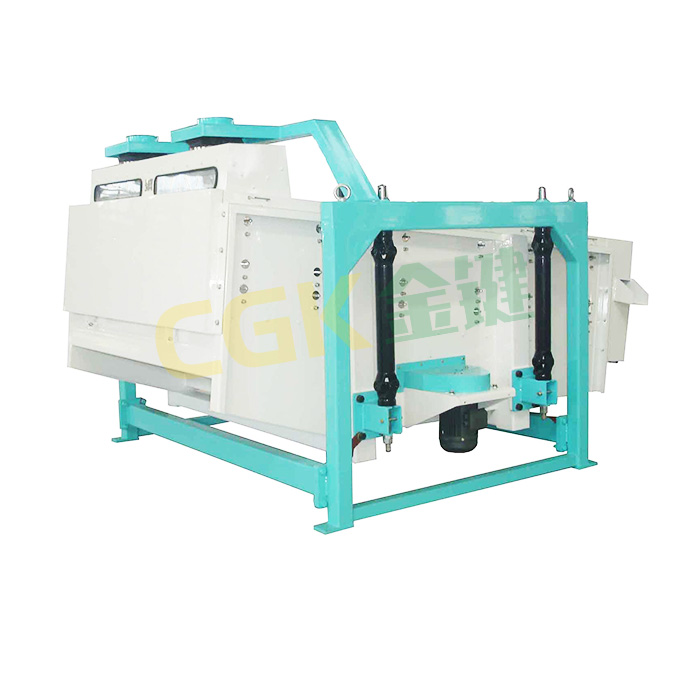

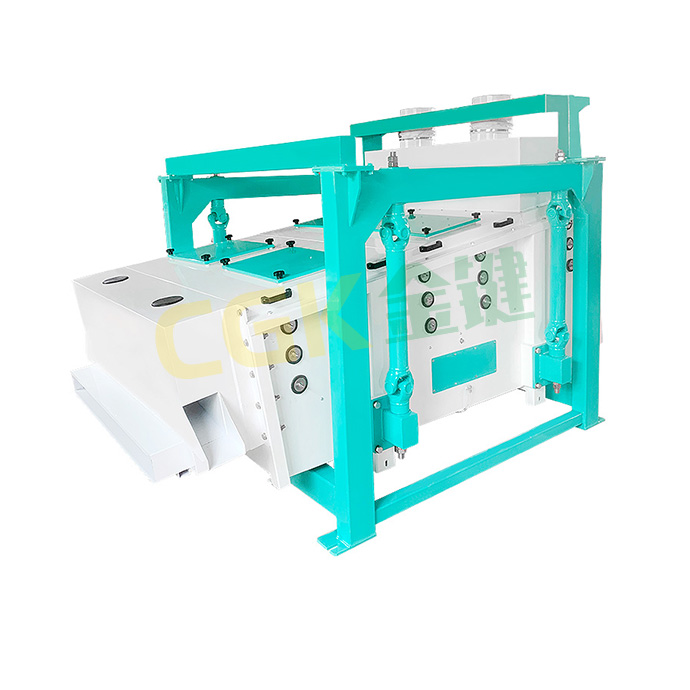

Oscillating separator

Functions:

The oscillating separator is a cleaning machine designed on our company's 3.0 platform, which uses the principle of rotary vibration to classify granular bulk materials.

It is mainly used for grain cleaning in grain and oil processing and warehousing industries, and can also be used for grading granular materials in pharmaceutical, chemical and other industries.

Send Email Contact us

Advantages

An optional feeding air suction device can effectively reduce the dust and impurity content entering the machine.
Optional 2-4 layers of screen surface, multiple functions of cleaning and grading.
The feed diversion device is optional, so there is no need to replace the screen plate for screening different materials, improving production efficiency.
An optional self-cleaning mechanism for the screen surface can be installed to automatically clean the large screen surface and improve screening efficiency.
Universal joint hanging screen body and metal screen grid make the equipment durable.

Parameter

Model	Screen size (LxW cm)	Max. Capacity (T/H)	Weight (kg)	Power (kw)	Dimension (LxWxH,mm)
TXZS 150×200	150×200	70	2370	3	336023981900
TXZS 150×250	150×250	80	2550	3	386023981900
TXZS 200×250	200×250	150	3620	4	386028981900
TXZS 200×300	200×300	160	3750	4	436028981900
TXZS 200×360	200×360	180	3900	5.5	512028982050

Solution

Case

Products

Oscillating separator

Functions:

Advantages

Parameter

Related Products

Rice length grader

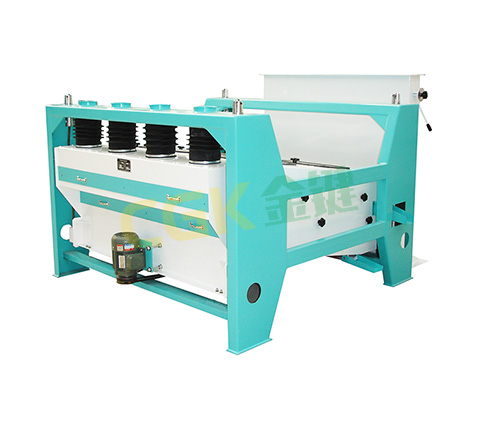

Rotary separator
