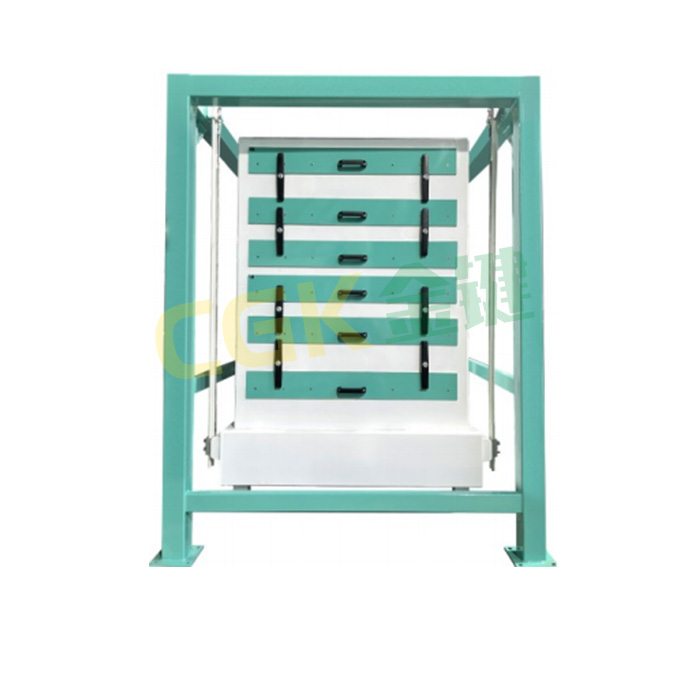

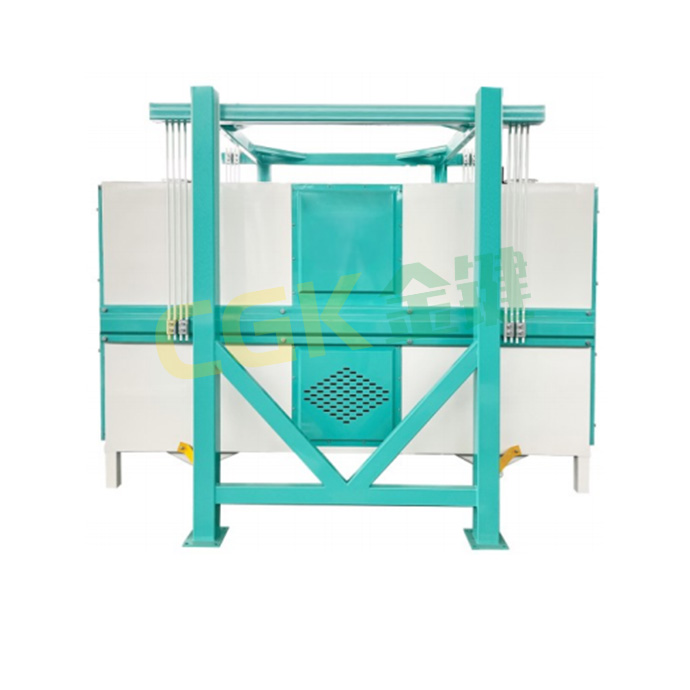

Plansifter
Plansifter

Plansifter

Functions:

The single and double plansifter is mainly used for powder screening, and can also be used for size classification of other granular materials.

It is mainly used for grain cleaning and can also be used in pharmaceutical, chemical and other industries.

Advantages

  • Drawing lessons from the vertical and horizontal independent pressing methods of the square plansifter,It is firm and does not loosen after being pressed, fundamentally eliminating phenomena such as powder channeling and powder leakage;
  • The fully enclosed stainless steel outer channel increases the screening area by 32% and the processing capacity by 25%.

Parameter

Parameter model

Screening area (㎡)

Power (KW)

Rotation diameter (mm)

Weight(kg)

Dimension (mm)

FSGW1x100

10-12

1.5

45-50

1600

1550*1550*2000

FSGW1x120

12-14

1.5

45-50

1800

1720*1720*2100

FSGW2x100

20-24

2.2

45-60

1600

2800*1720*2010

FSGW2x120

24-29

2.2

45-60

1800

3100*1860*2050
