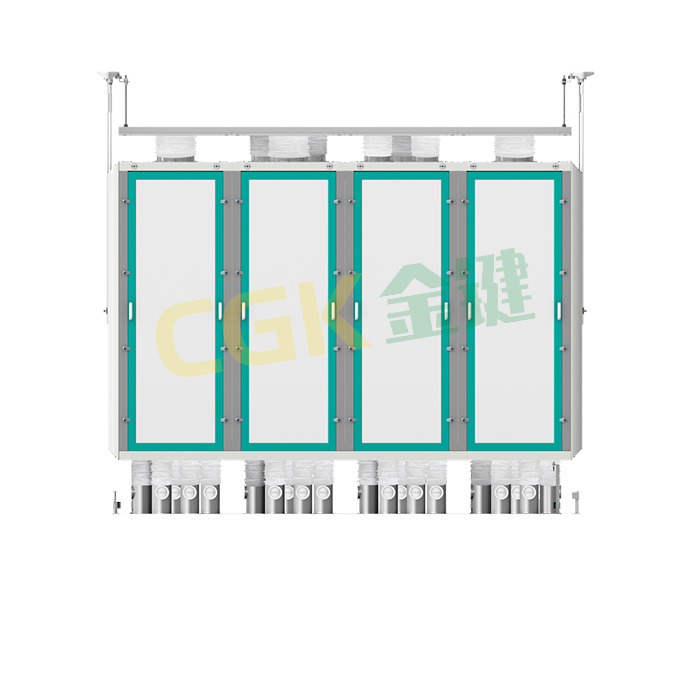

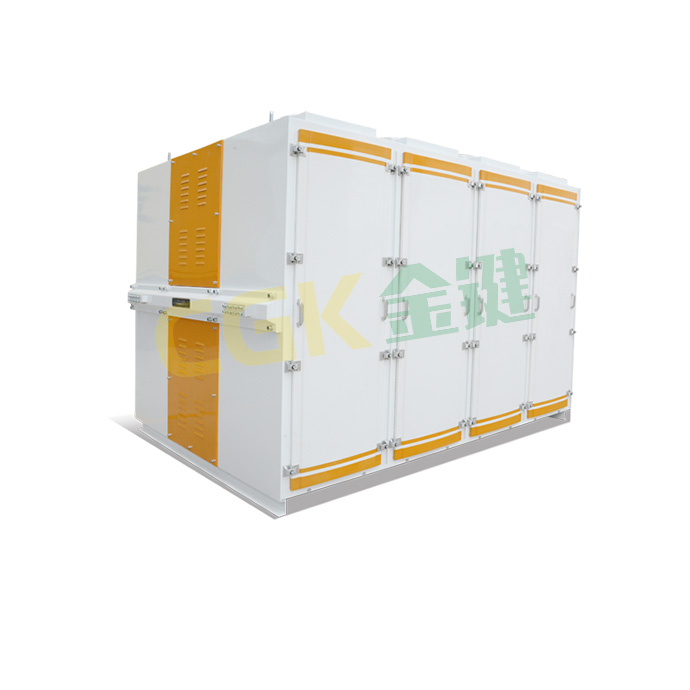

Square plansifter

Functions:

FSFG square plansifter can be used for screening malt and flour in wheat, rye, corn, durum and special milling filed. In addition to screening, the FSFG square plansifter can also be used for grading flour and grains, and can also be used as an inspection screen before bag packaging and bulking.

Send Email Contact us

Advantages

It has the characteristics of large screening area, strong screening ability, easy to clean and low maintenance;
It has good dynamic acceleration performance, which can increase the screening intensity and thereby improve the screening effect;
The transmission frame of FSFG square plansifter is made of steel plate, which is high in strength, sturdy and durable;
The aluminum alloy screen grid has the characteristics of high precision, no deformation and long life;
The cleaning block (installed inside )can clean every corner of the screen grid to ensure the hygiene of the equipment;
Different material channels are isolated from each other and have good sealing performance to prevent material channeling.

Parameter

Model	Screen area (m²)	Sieve grid specifications (mm)	Transmission motor power (kW)	Dimension (L×W×Hmm)	Height (mm)	Weight (kg)
FSFG4*24	23.04~27.94	640	3	178024102430	1835	2700
FSFG6*24	34.56~41.90	640	4	243025502430	1835	4200
FSFG6*24	55.08~65.45	740	7.5	270629002580	1985	4950
FSFG8*24	51.84~63.50	640	7.5	253033602580	1985	5800
FSFG8*24	73.44~87.26	740	11	276637602580	1985	6200

Solution

Case

Products

Square plansifter

Functions:

Advantages

Parameter

Related Products

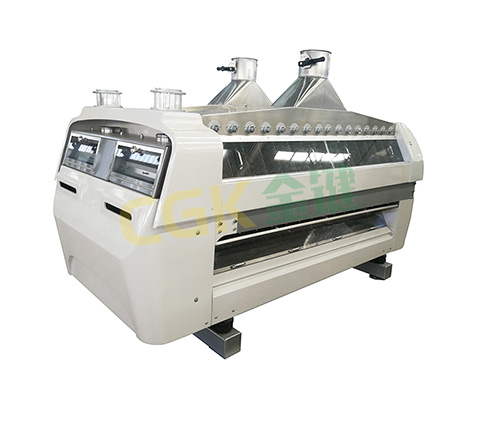

Purifier

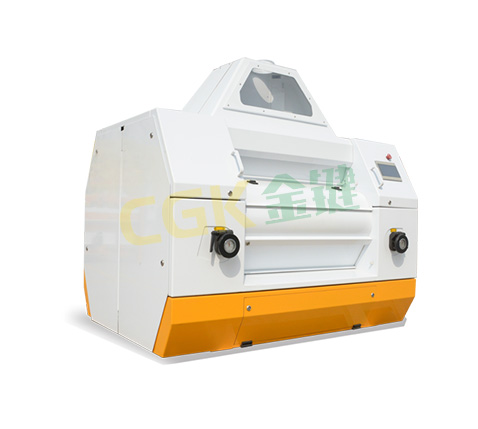

Roller mill
