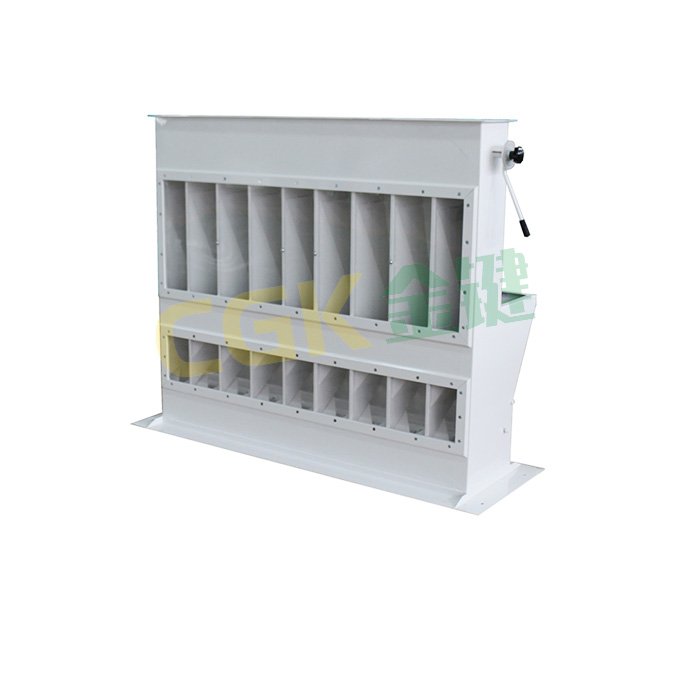

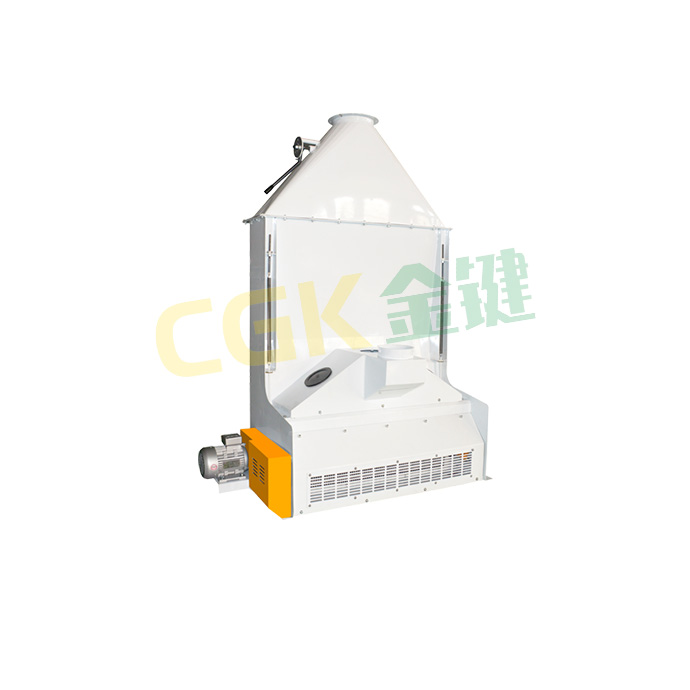

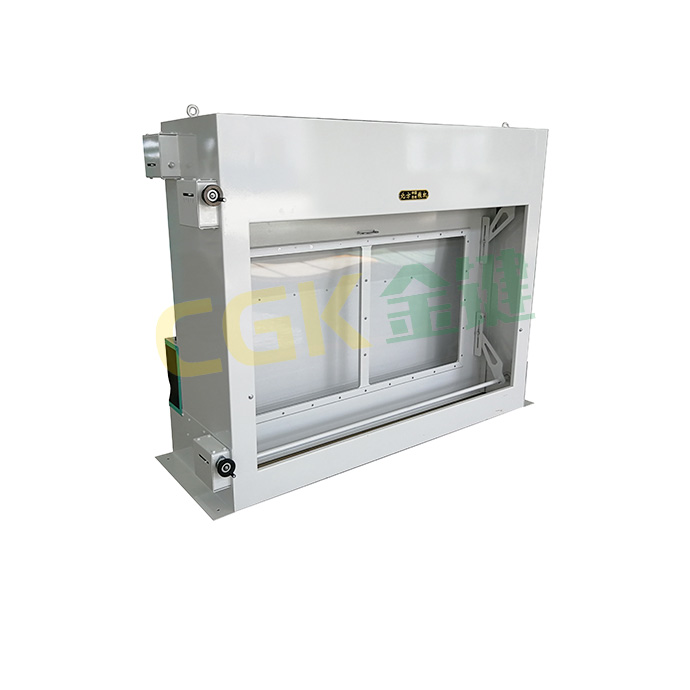

Vertical aspirator

Vertical aspirator

Vertical aspirator

Vertical aspirator

Functions:

The vertical aspirator separates light materials from granular materials through the action of wind pulling.

This machine is used in grain depots, flour mills, rice mills, corn processing plants, oil plants, alcohol plants, etc.

Send Email Contact us

Advantages

The air suction volume adjustment mechanism is easy to operate and ensures the separation effect of light impurities;
Equipped with a transparent observation window through which can easily observe the working performance and make adjustments accordingly at any time.
The feeding mechanism can evenly distribute the material flow in the width direction, improve the feeding efficiency, and meet the needs of high output;
It can be used with the cleaning machines.

Parameter

Model	Power	Dimension (L×W×H mm)	Air volume (m³/min)
TFDX80	0.25	1050×470×1760	40
TFDX80		1050×470×1760	40
TFDX100	0.25	1240×730×2070	60
TFDX120		1450×470×2010	70
TXFD120	0.37	1460×480×2180	70
TFDX150		1750×470×2210	90
TFDX150	0.55	1750×470×2290	90
TFDX200		2220×470×2170	120
TFDX200	1.1	2230×470×2395	120
