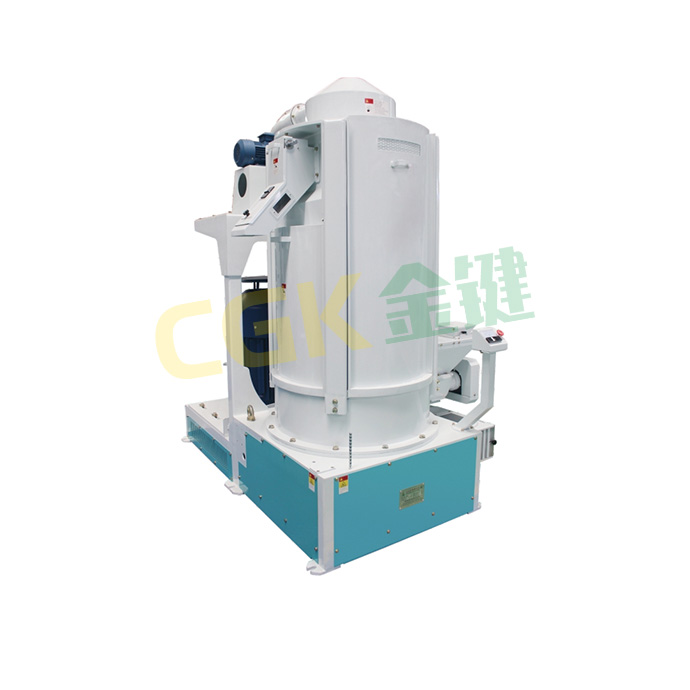

Vertical grains peeler

Functions:

The material enters the peeling inner cavity under the action of the propeller and moves from bottom to top. After being rubbed by the grinding wheel and the screen plate, the skin is peeled off to achieve the peeling effect. It can effectively remove the seed coats of corn, sorghum, millet, barley and other crops while fully ensuring the integrity of the kernels.

Mainly used in grain processing enterprises, feed processing enterprises, etc.

Send Email Contact us

Advantages

The grinding chamber adopts the bottom feeding and top discharging method. Multiple units can be processed in series. There is no need for a hoist in the middle, and it occupies a small area. The material flow direction can be left in and right out, or right in and left out.
The auger assists in feeding, the output is uniform, and is not affected by fluctuations in air volume. The whole machine has good rigidity and runs more smoothly.
The built-in spray fan is combined with an external medium-pressure fan to form a wind method that combines spray and suction, which can easily tumble particles in the peeling room. The peeling is more uniform, the bran removal is cleaner, and the temperature of the material coming out of the machine is lower.

Parameter

Model		MTPL-3000	MTPL-6000	MTPL-9000
Output (t/h)	millet	2.5-3.5	4-7	7-10
	broomcorn	2-3	4-7	7-10
	maize	3-4	5-6	8-12
	barley,highland barley	2.5-3	4-5	7-9
Power (kW)	millet	22-37	45-55	75
	broomcorn	22-37	45-55	75
	maize	37	37-45	75-90
	barley,highland barley	22-37	45-55	75-90
Air volume(m³/h )		2400	3000	4000
Weight(kg)		1310	1610	3080
Dimension(L×W×H)(mm)		1430×1390×1920	1560×1470×2250	2400×1830×2340
