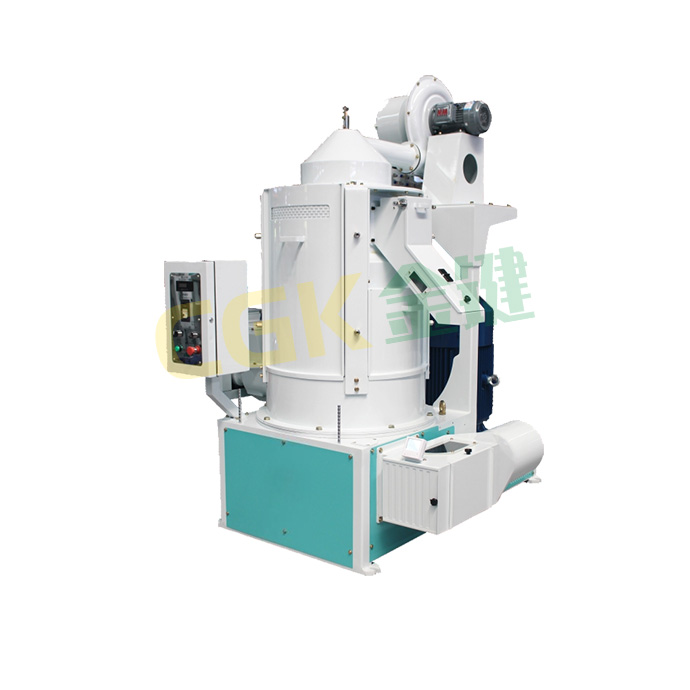

Vertical grains polisher

Functions:

The material enters the peeling inner cavity under the action of the propeller and moves from bottom to top. After being rubbed by the iron roller and the sieve plate, the bran powder, dirt, etc. are rubbed out to achieve the polishing effect and fully ensure the integrity of the kernels.

Mainly used in grain processing enterprises, food processing plants, etc.

Send Email Contact us

Advantages

The grinding chamber adopts the bottom feeding and top discharging method. Multiple units are processed in series. There is no need for a hoist in the middle, and it occupies a small area. The material flow direction can be left in and right out, or right in and left out.
This series of vertical models has good polishing uniformity and high yield.
The auger assists in feeding, the output is uniform, and is not affected by fluctuations in air volume. The whole machine has good rigidity and runs more smoothly.
The built-in spray fan is combined with an external medium-pressure fan to form a wind method that combines spray and suction, which can make the particles in the polishing room roll easily and achieve better polishing uniformity. The bran discharge is cleaner, the temperature of the material coming out of the machine is lower, and the effect is better.

Parameter

Model		MPGL-21	MPGL-26	MPGL-29	MPGL-30
Output(t/h)	whitening for big millet	2.5~5	4~7	-
Output(t/h)	corn grits milling	3~4	4.5~5.5	5.5-7.5	7.5~9
Power(kW)	whitening for millet	37~45	45~55	-
Power(kW)	Corn grits milling	37~45	45~55	55~75	75~90
Air volume(m³/h)		2400	3000	3000	3600
Weight(kg)		1310	1770	1850	2280
Dimension (L×W×H)(mm)		1430×1390 x1920	1560×1470 x2250	1560×1470 x2300	1560×1590 x2330
