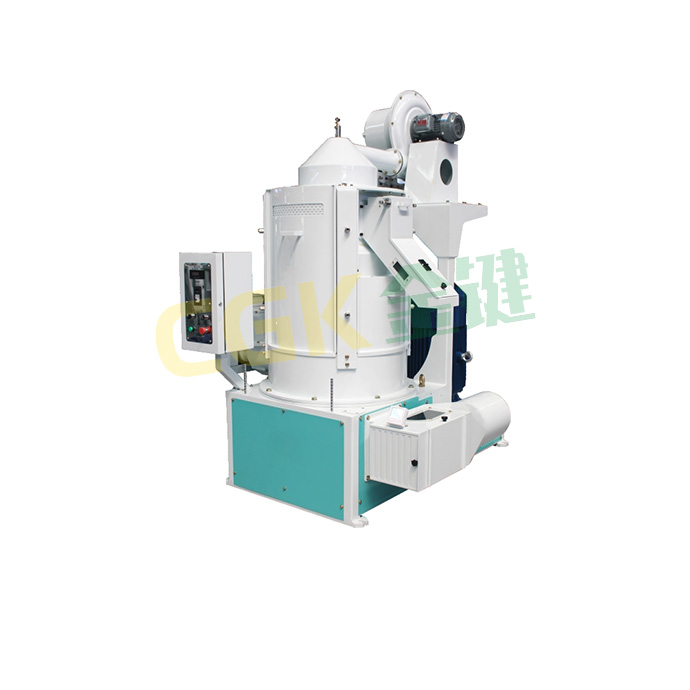

Vertical iron roller whitener

Functions:

The material enters the inner cavity under the action of the propeller. Under the action of the screw propeller, it moves from bottom to top. After being rubbed by the iron roller and the sieve plate, the bran powder, dirt, etc. are removed to achieve the polishing effect and fully guarantee the polishing effect and the integrity of rice.

Mainly used in rice processing plants, food processing plants, etc.

Send Email Contact us

Advantages

The grinding chamber adopts the bottom feeding and top discharging method. Multiple units are processed in series. There is no need for a bucket elevator in the middle, and it occupies a small area. The material flow direction can be left in and right out, or right in and left out.
This series of vertical models has good polishing uniformity and high yield.
The auger assists in feeding, the output is uniform, and is not affected by fluctuations in air volume. The whole machine has good rigidity and runs more smoothly.
The built-in spray fan is combined with an external medium-pressure fan to form a wind method that combines spray and suction, which can make the particles in the polishing room roll easily and achieve better polishing uniformity. The bran discharge is cleaner, the temperature of the material coming out of the machine is lower, and the effect is better.

Parameter

Item	MPGL-17	MPGL-21	MPGL-26
Capacity (t/h)	3-4	4-5	5-6
Air Volume (m³/h)	1800-2500	2000-3000	2500-3500
Power (kw)	30/37-6	37/45-6	55-6
Weight (kg)	1010	1100	1300
Dimensions (mm)	1640X1340X1978	1640x1340x2090	1570x1580x2200

Solution

Case

Products

Vertical iron roller whitener

Functions:

Advantages

Parameter

Related Products

Screw conveyor

Hydraulic flaker

Bucket elevator

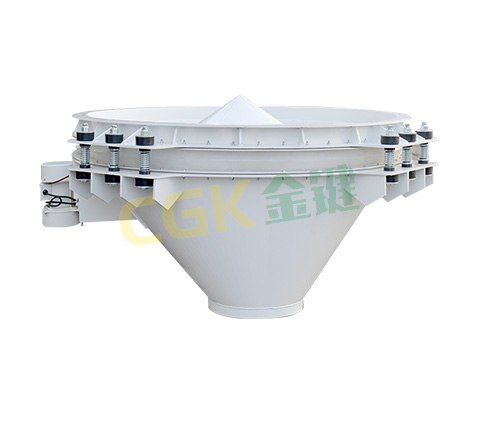

Vibrating unloader
