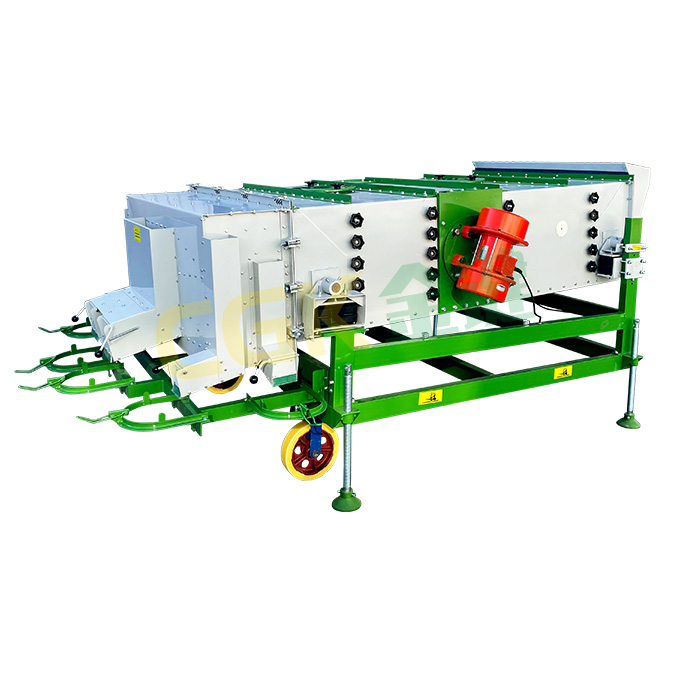

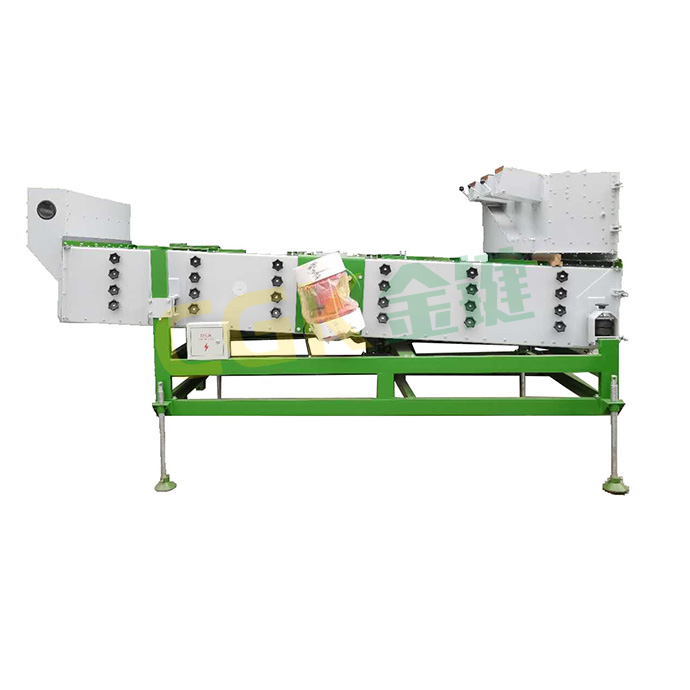

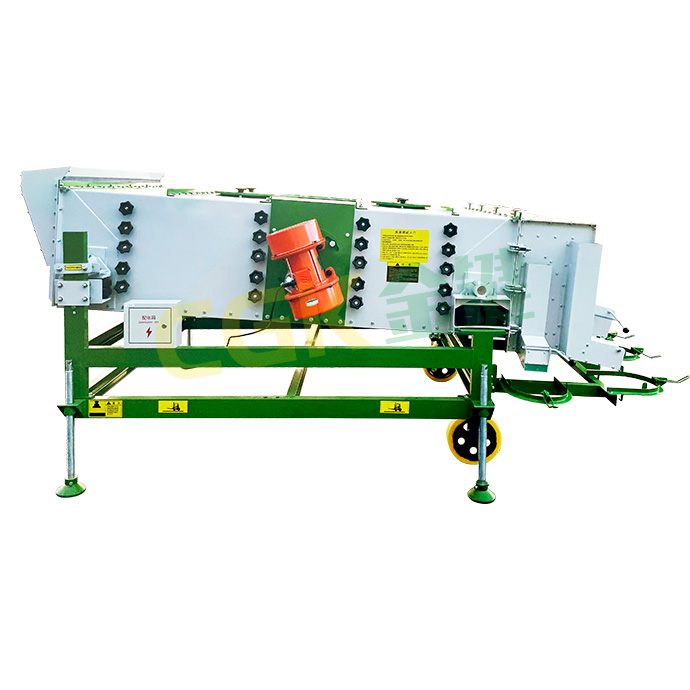

Vibration grader

Functions:

Through the vibration of the high-frequency vibration motor, the material moves up and down, the screen surface becomes tilted, and the material vibrates forward to achieve fine classification with different screen holes.

Mainly used for fine grading of coffee, soybeans, broad beans, peas, mung beans, kidney beans and other legume crops.

Send Email Contact us

Advantages

Self-designed 2 and 3 layer flaps, when there is no need to separate large grains, just press the handle;

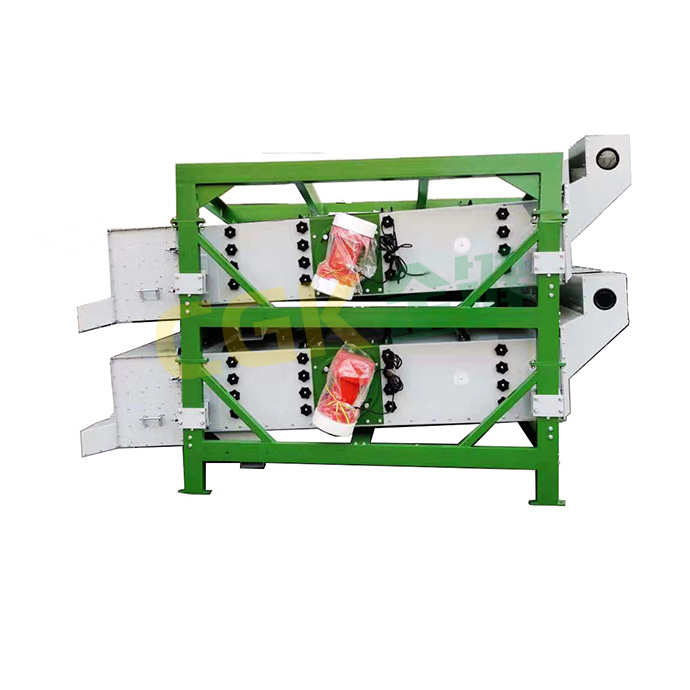

Optional upper and lower screen boxes are connected in series or parallel to double the screening range and double the screen area to achieve ultra-fine classification. Save space at the same time;
Optional three-layer and four-layer screens are available to meet different material grading needs;
The specially designed feeding and materials spreading- up structure ensures uniform distribution of materials on each layer of screen surface;
The inlet and outlet adopts a hinge-turning structure, making it easy and quick to replace the screen;

Parameter

Model	Screen size (mm)	Power (kw)	Capacity (T/H)	Weight (Kg)	Dimension (LxWxH mm)
TFJZ-5	1250*2400	1.5	7.5	1040	350020501880
TFJZ-5L	1250*3600	1.5	7.5	1360	463020502050
TFJZ-10	1500*2400	1.5	10	1160	350023001880
TFJZ-10*2	1500*2400	3	15-20	2800	436323754399
TFJZ-10*3	1500*2400	4.5	20-30	4200	438725495435
