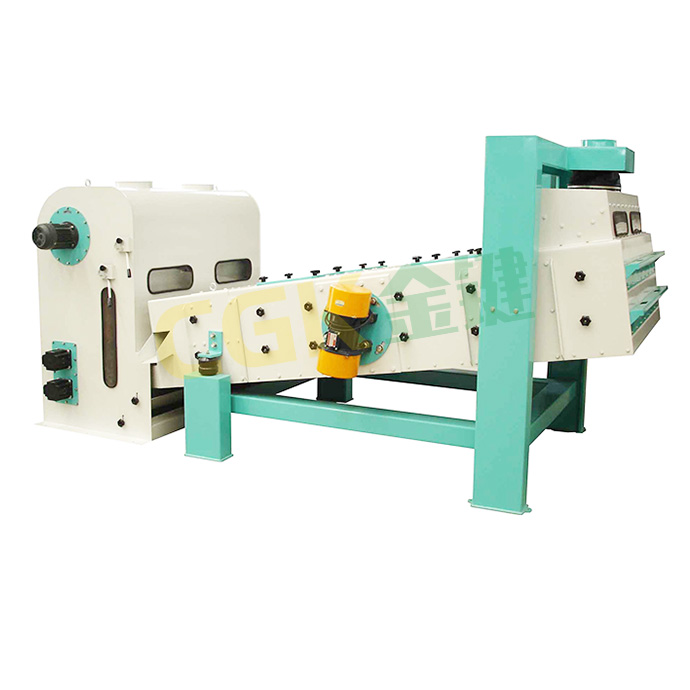

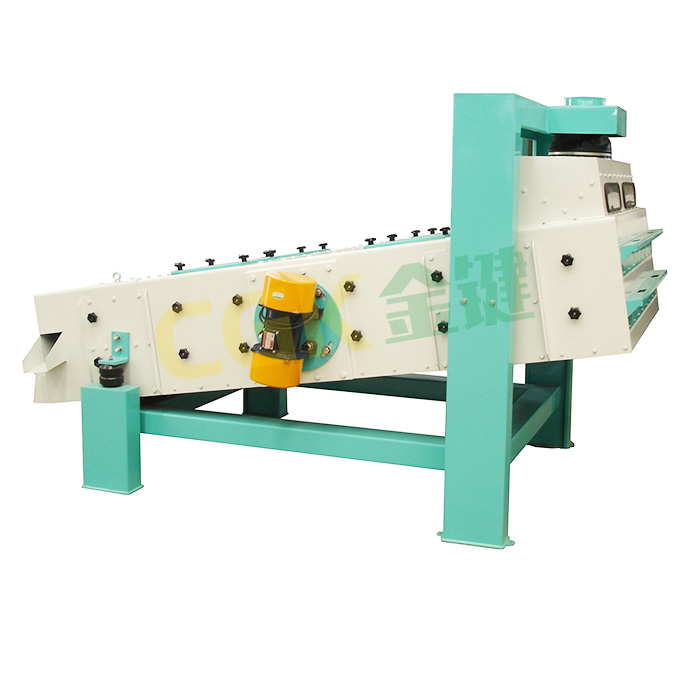

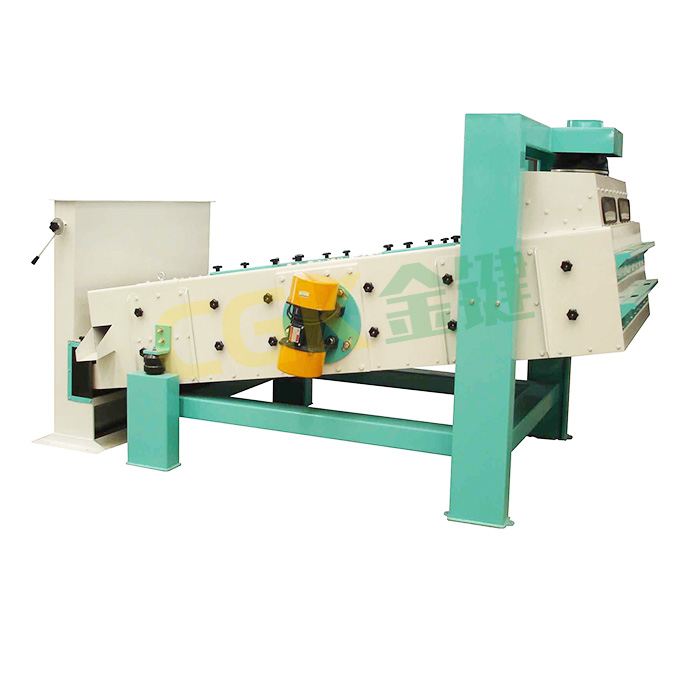

Vibration separator

Functions:

The high-efficiency vibration separator is a high-end product designed on our company's 4.0 platform.

It is mainly used for cleaning purpose in grain and oil industry and raw materials storage filed, and can also be used for grading granular materials in pharmaceutical, chemical and other industries.

Send Email Contact us

Advantages

Compact and sturdy structure, exquisite and beautiful appearance.
The stroke, throwing angle and screen surface inclination angle are all adjustable.
High grading efficiency, high output, low energy consumption and environment friendly.
Optional 2-4 layers of screens can be used for cleaning and grading
An optional air suction device at the inlet can effectively reduce dust and light impurities.

Parameter

Model	Capacity	Max. Capacity	Power	Dimension(L×W×H)mm
TQLZ 100×200	<12	72	0.37*2	238218961838
TQLZ 150×200	<16	90	0.75*2	238221961838
TQLZ150×280	<18	105	0.75*2	315021962036
TQLZ 200×200	<20	120	1.1*2	238226961838
TQLZ 200×300	<28	150	1.5*2	315026962036
